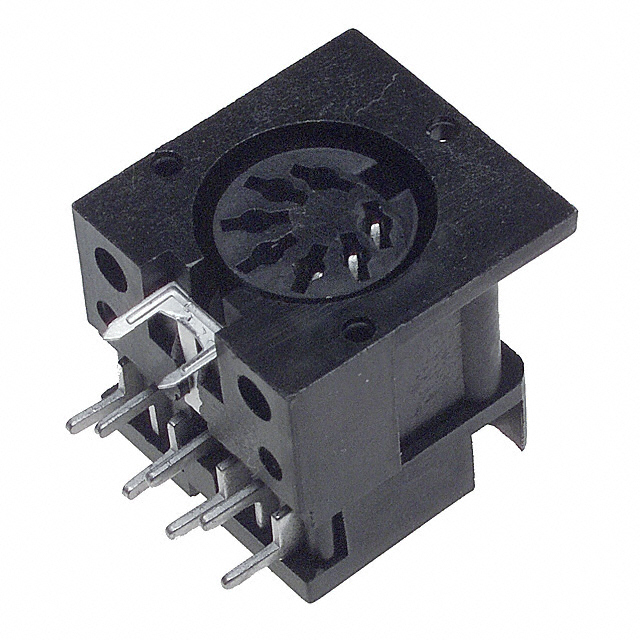

SDS-70J

Active

CUI Devices

CONN RCPT FMALE DIN 7POS SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN RCPT FMALE DIN 7POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SDS-70J

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Material	Brass
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Ground
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	DIN (270 Degree)
Shielding	Unshielded
Termination	Solder
Voltage Rating	100 VAC

Part	Shielding	Number of Positions	Features	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Current Rating (Amps)	Termination	Voltage Rating	Fastening Type	Shell Size - Insert	Contact Material	Material Flammability Rating	Color	Connector Type	Mounting Type	Primary Material	Orientation
CUI Devices SDS-70J	Unshielded	7	Ground	85 °C	-40 °C	Polybutylene Terephthalate (PBT)	2 A	Solder	100 VAC	Push-Pull	DIN (270 Degree)	Brass	UL94 V-0	Black	Receptacle Female Sockets	Through Hole Right Angle	Plastic	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder
