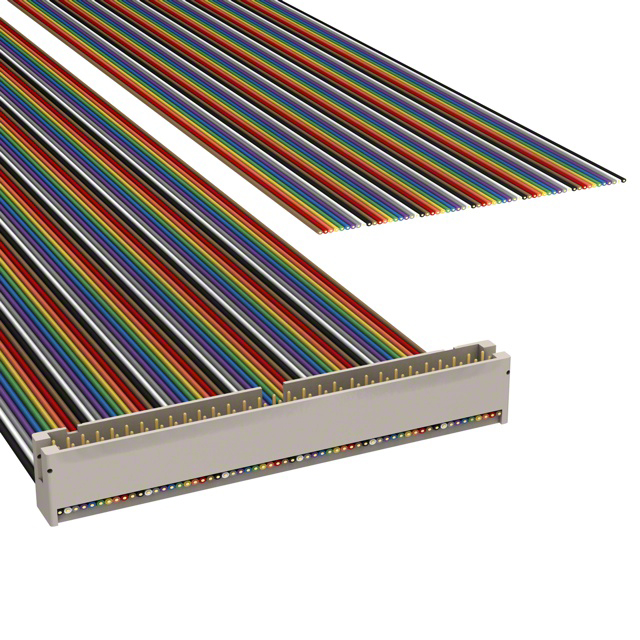

M1KXK-6036R

Active

3M (TC)

IDC CABLE - MPK60K/MC60M/X

Deep-Dive with AI

Search across all available documentation for this part.

Documents3302 Series Datasheet +1

M1KXK-6036R

Active

3M (TC)

IDC CABLE - MPK60K/MC60M/X

Deep-Dive with AI

Documents3302 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1KXK-6036R

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Plug to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	60
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1KXK Series

Part	Color	Number of Rows	Number of Positions	Contact Finish	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Shielding	Features	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Cable Termination
3M (TC) M1KXK-3440K	Multiple Twisted Pair (Flat)	2	34	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	1.02 m	3.34 ft	IDC
3M (TC) M1KXK-6436J		2	64	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-3436J		2	34	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-3036J		2	30	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-6036R	Multiple Ribbon	2	60	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-3436R	Multiple Ribbon	2	34	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-1436R	Multiple Ribbon	2	14	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-6436R	Multiple Ribbon	2	64	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-6036J		2	60	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-2636J		2	26	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.79
		10	$ 28.43
		25	$ 25.77
		50	$ 23.98
		100	$ 22.36
		250	$ 20.44
		500	$ 19.16

Description

General part information

M1KXK Series

60 Position Cable Assembly Rectangular Plug to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources

3302 Series

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
