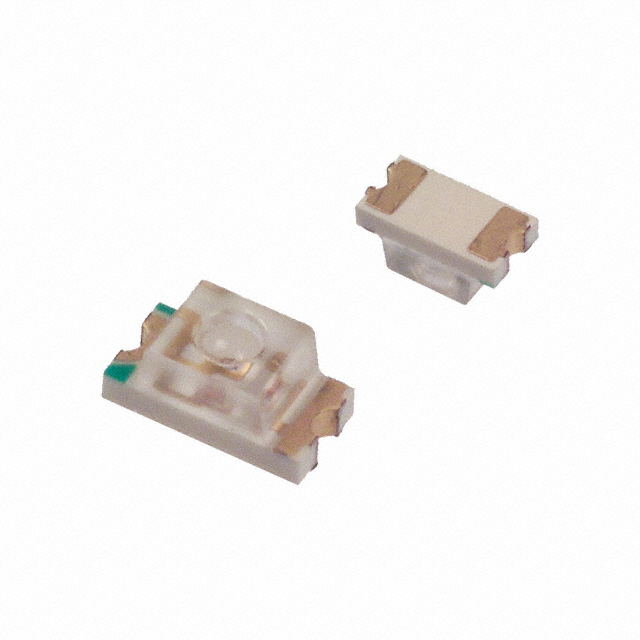

CMD11-21VYC/TR8
ActiveVisual Communications Company - VCC
LED YELLOW CLEAR 1206 SMD
Deep-Dive with AI
Search across all available documentation for this part.
CMD11-21VYC/TR8
ActiveVisual Communications Company - VCC
LED YELLOW CLEAR 1206 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CMD11-21VYC/TR8 |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.5 mm |
| Lens Size [diameter] | 1.1 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 6 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 1.5 mm |
| Supplier Device Package | 1206 |
| Viewing Angle | 20 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 585 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.90 | |
| 10 | $ 0.59 | |||
| 100 | $ 0.38 | |||
| 1000 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.90 | ||
| 10 | $ 0.59 | |||
| 100 | $ 0.38 | |||
| 1000 | $ 0.30 | |||
| Tape & Reel (TR) | 3000 | $ 0.28 | ||
| 6000 | $ 0.27 | |||
| 15000 | $ 0.27 | |||
| 30000 | $ 0.26 | |||
Description
General part information
CMD11-21 Series
Yellow LED Indication - Discrete 2V 1206 (3216 Metric)
Documents
Technical documentation and resources
No documents available
