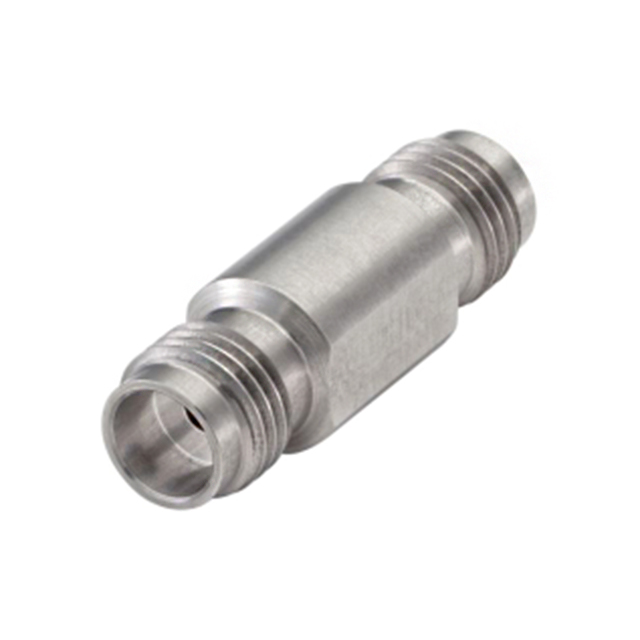

08K121-K00S3

Active

Rosenberger

PRECISION 1.85 ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 1.85 ADAPTER

Technical Specifications

Parameters and characteristics for this part

Part	Adapter Type	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Impedance	Mating Cycles	Center Contact Plating	Convert From (Adapter End)	Center Gender	Frequency - Max [Max]	Dielectric Material	Insertion Loss	Adapter Series	Convert To (Adapter End)	Conversion Type	Center Contact Material	Style	Mounting Type	Type	For Use With/Related Products	Specifications	Specifications	Accessory Type
Rosenberger 08K121-K00S3	Jack to Jack	85 °C	-40 °C	Stainless Steel	50 Ohms	500	Gold	1.85mm Jack Female Socket	Female to Female	70 GHz	Polyetheretherketone (PEEK)	0.42 dB	RPC-1.85 to RPC-1.85	1.85mm Jack Female Socket	Same Series	Beryllium Copper	Straight	Free Hanging (In-Line)
Rosenberger 08K121-K20S3																			Specialized	Network Analyzer	Jack	1.85 Plug	Calibration Adapter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 461.91

General part information

Adapter Coaxial Connector 1.85mm Jack, Female Socket To 1.85mm Jack, Female Socket 50 Ohms

Technical documentation and resources
