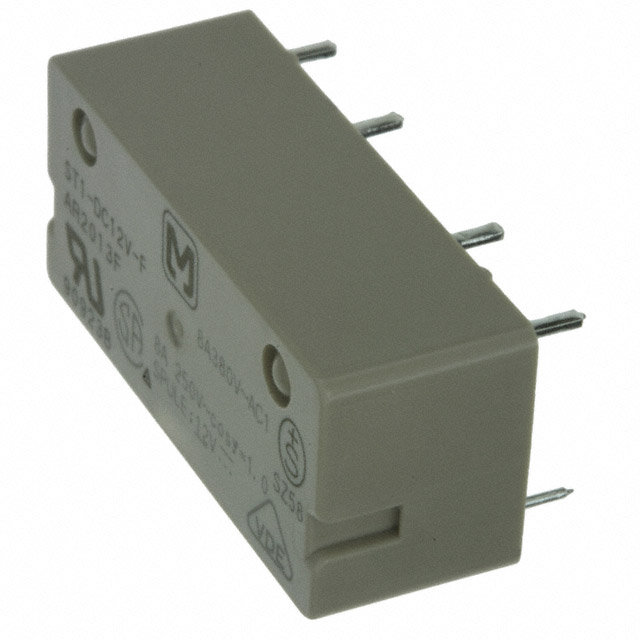

ST1-DC12V-F

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPST 8A 12V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPST 8A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Seal Rating	Contact Material	Coil Type	Coil Resistance	Relay Type	Operate Time	Coil Voltage	Contact Rating (Current)	Load - Max Switching	Switching Voltage	Switching Voltage	Release Time	Must Operate Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Approval Agency	Coil Current	Must Release Voltage	Mounting Type	Contact Form
Panasonic Electric Works ST1-DC12V-F	Sealed - Fully	Silver Tin Oxide (AgSnO)	Non Latching	600 Ohms	General Purpose	15 ms	12 VDC	8 A	2000 W 3040 VA	380 VAC	250 VDC	10 ms	9.6 VDC	-40 °C	60 °C	PC Pin	CSA UR VDE	20 mA	1.2 VDC	Through Hole	DPST-NO/NC
Panasonic Electric Works ST1-DC24V-F	Sealed - Fully	Silver Tin Oxide (AgSnO)	Non Latching	2.4 kOhms	General Purpose	15 ms	24 VDC	8 A	2000 W 3040 VA	380 VAC	250 VDC	10 ms	19.2 VDC	-40 °C	60 °C	PC Pin	CSA UR VDE	10 mA	2.4 VDC	Through Hole	DPST-NO/NC
Panasonic Electric Works ST1-DC24V	Sealed - Fully	Silver Alloy	Non Latching	2.4 kOhms	General Purpose	15 ms	24 VDC	8 A	2000 W 3040 VA	380 VAC	250 VDC	10 ms	19.2 VDC	-40 °C	60 °C	PC Pin	CSA UR VDE	10 mA	2.4 VDC	Through Hole	DPST-NO/NC
Panasonic Electric Works ST1-DC5V-F	Sealed - Fully	Silver Tin Oxide (AgSnO)	Non Latching	105 Ohms	General Purpose	15 ms	5 VDC	8 A	2000 W 3040 VA	380 VAC	250 VDC	10 ms	4 VDC	-40 °C	60 °C	PC Pin	CSA UR VDE	47.6 mA	0.5 VDC	Through Hole	DPST-NO/NC
Panasonic Electric Works ST1-DC9V	Sealed - Fully	Silver Alloy	Non Latching	360 Ohms	General Purpose	15 ms	9 VDC	8 A	2000 W 3040 VA	380 VAC	250 VDC	10 ms	7.2 VDC	-40 °C	60 °C	PC Pin	CSA UR VDE		0.9 VDC	Through Hole	DPST-NO/NC
