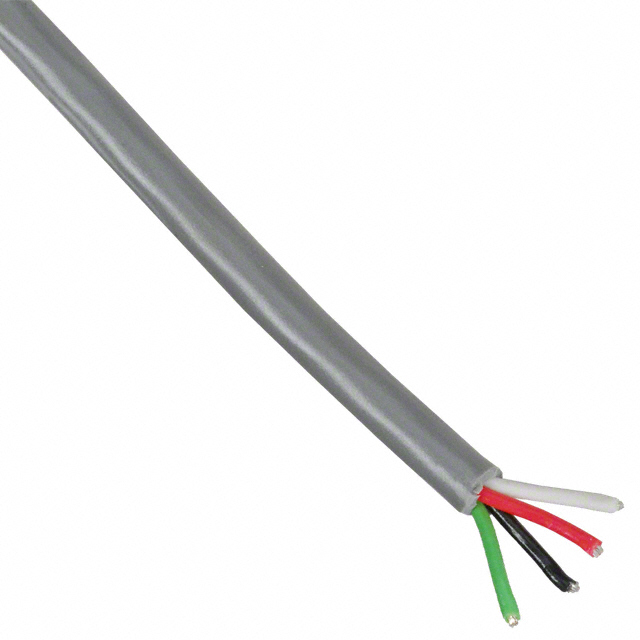

1174C SL001

Active

ALPHA WIRE

CABLE 4COND 22AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 22AWG SLATE 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1174C SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	4.7 mm
Jacket (Insulation) Diameter [diameter]	0.185 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	150 V
Wire Gauge	22 AWG

Part	Conductor Insulation	Wire Gauge	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Number of Conductors	Length	Length	Usage
ALPHA WIRE 1174C SL001	Poly-Vinyl Chloride (PVC)	22 AWG	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Copper Tinned	150 V	7	30 AWG	Slate	4.7 mm	0.185 in	Multi-Conductor	4	1000 ft	304.8 m	Communication Control

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 481.12

General part information

4 Conductor Multi-Conductor Cable Slate 22 AWG 1000.0' (304.8m)
