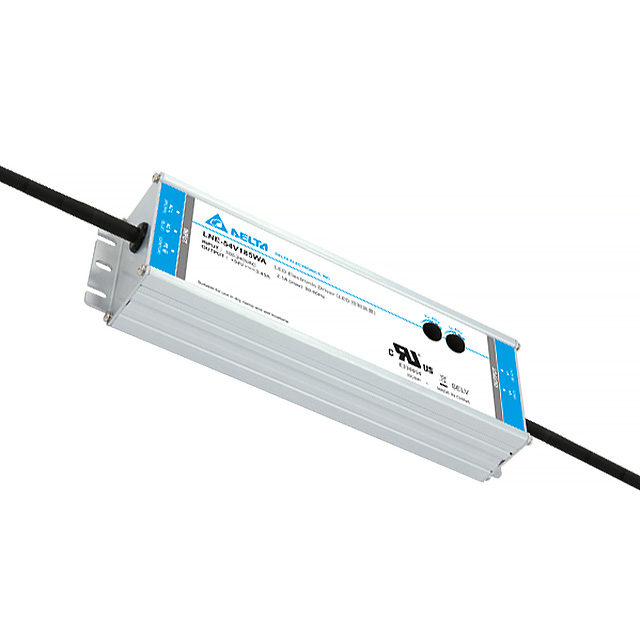

LNE-54V185WAAA
ObsoleteDelta Electronics
LED DRIVER CC/CV AC/DC 54V 3.45A
Deep-Dive with AI
Search across all available documentation for this part.
LNE-54V185WAAA
ObsoleteDelta Electronics
LED DRIVER CC/CV AC/DC 54V 3.45A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LNE-54V185WAAA |
|---|---|
| Approval Agency | UL |
| Current - Output (Max) [Max] | 3.45 A |
| Efficiency | 94 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 185 W |
| Ratings | IP65 |
| Size / Dimension [x] | 8.03 " |
| Size / Dimension [x] | 204 mm |
| Size / Dimension [y] | 68 mm |
| Size / Dimension [y] | 2.68 " |
| Size / Dimension [z] | 38.8 mm |
| Size / Dimension [z] | 1.53 in |
| Standard Number | 62368-1, 60950-1, 50581, 55032, 55011, 60601-1 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3.85 kV |
| Voltage - Output [Max] | 54 V |
| Voltage - Output [Min] | 27 V |
| Weight | 2.4 lbs |
| Weight | 1.1 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LNE-54 Series
3.45A 27 ~ 54V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
