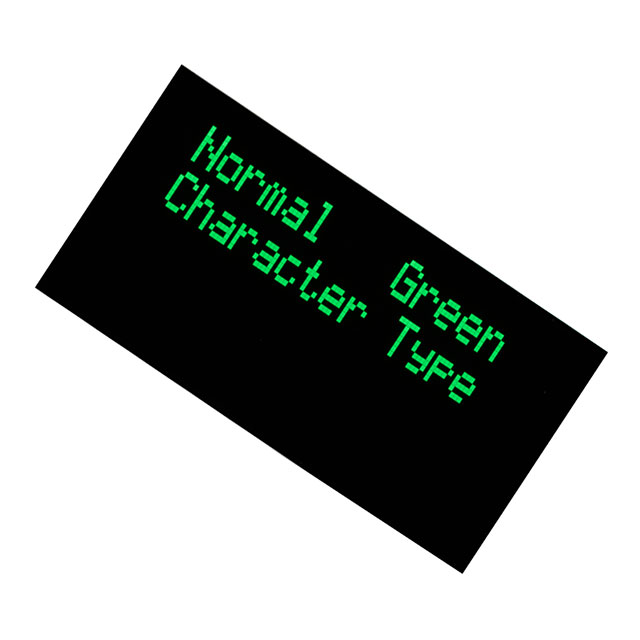

LOD-H12864GP-G

Active

Lumex Opto/Components Inc.

128X64 GRAPHIA OLED GREEN PIXEL

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

128X64 GRAPHIA OLED GREEN PIXEL

Technical Specifications

Parameters and characteristics for this part

Part	Display Type	Dot Size [z]	Dot Size [y]	Interface	Dot Pixels [y]	Dot Pixels [x]	Background Color	Dot Pitch [y]	Dot Pitch [x]	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [y]	Viewing Area [z]	Graphics Color	Dot Size [x]	Viewing Area [x]
Lumex Opto/Components Inc. LOD-H12864GP-W-UR	OLED - Passive Matrix	0.4 mm	0.4 mm	UART	64	128	Black	0.43 mm	0.43 mm	61.47 mm	2.42 in	57.01 mm	29.9 mm	White
Lumex Opto/Components Inc. LOD-H12864GP-G	OLED - Passive Matrix		4 mm	Parallel 8-Bit	64	128	Black					29.49 mm		Green	4 mm	57.01 mm
Lumex Opto/Components Inc. LOD-H12864GP-Y-UR	OLED - Passive Matrix	0.4 mm	0.4 mm	UART	64	128	Black	0.43 mm	0.43 mm	61.47 mm	2.42 in	57.01 mm	29.9 mm	Yellow
Lumex Opto/Components Inc. LOD-H12864GP-B-UR	OLED - Passive Matrix	0.4 mm	0.4 mm	UART	64	128	Black	0.43 mm	0.43 mm	61.47 mm	2.42 in	57.01 mm	29.9 mm	Blue
Lumex Opto/Components Inc. LOD-H12864GP-G-UR	OLED - Passive Matrix	0.4 mm	0.4 mm	UART	64	128	Black	0.43 mm	0.43 mm	61.47 mm	2.42 in	57.01 mm	29.9 mm	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Green OLED - Passive Matrix Parallel, 8-Bit 128 x 64

Technical documentation and resources

No documents available
