MP8020GQV-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
802.3AF/AT/BT-COMPLIANT, POE POW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP8020GQV-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
802.3AF/AT/BT-COMPLIANT, POE POW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP8020GQV-Z |
|---|---|
| Auxiliary Sense | True |
| Current - Supply | 1 mA |
| Internal Switch(s) | Both |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

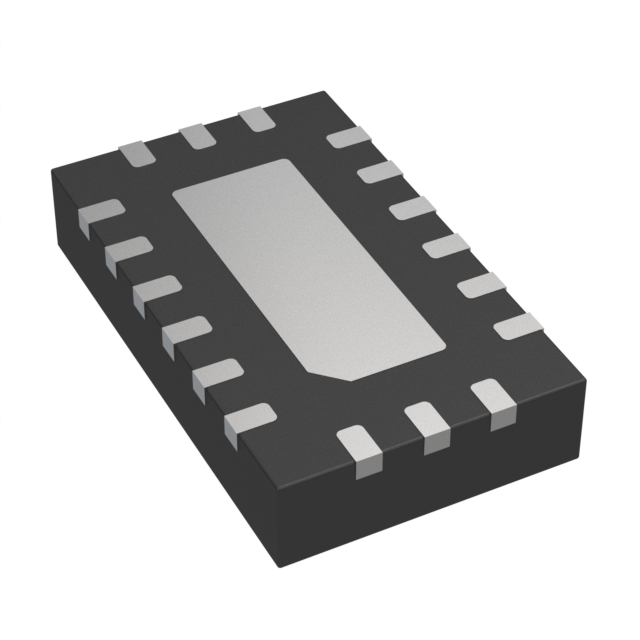

| Package / Case | 18-VQFN Exposed Pad |
| Power - Max [Max] | 71.3 W |
| Standards | 802.3bt, 802.3at (PoE+), 802.3af (PoE) |
| Supplier Device Package | 18-QFN (3x5) |
| Voltage - Supply [Max] | 57 V |
| Voltage - Supply [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.41 | |
| 10 | $ 2.17 | |||
| 25 | $ 2.05 | |||
| 100 | $ 1.74 | |||
| 250 | $ 1.64 | |||
| 500 | $ 1.43 | |||
| 1000 | $ 1.19 | |||
| 2500 | $ 1.10 | |||
| Digi-Reel® | 1 | $ 2.41 | ||
| 10 | $ 2.17 | |||
| 25 | $ 2.05 | |||
| 100 | $ 1.74 | |||
| 250 | $ 1.64 | |||
| 500 | $ 1.43 | |||
| 1000 | $ 1.19 | |||
| 2500 | $ 1.10 | |||
| Tape & Reel (TR) | 5000 | $ 1.06 | ||
Description
General part information
MP8020 Series
Power Over Ethernet Controller 1 Channel 802.3at (PoE+), 802.3af (PoE), 802.3bt 18-QFN (3x5)
