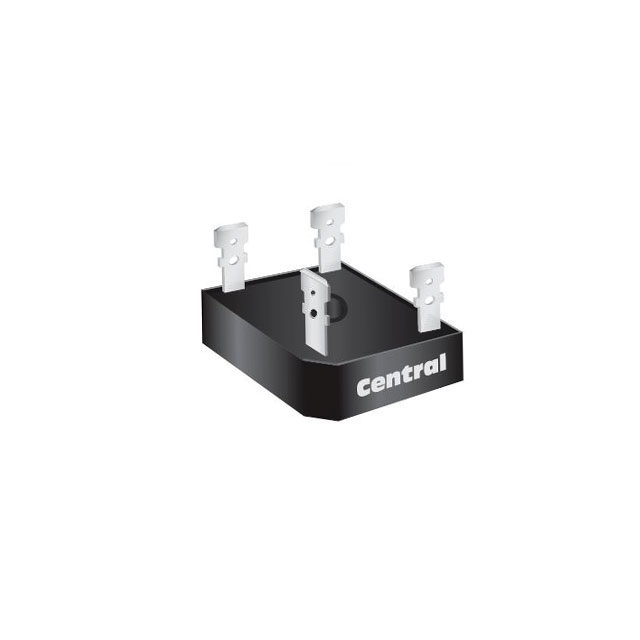

CBR25-020P

Obsolete

Central Semiconductor Corp

BRIDGE RECT 1P 200V 25A 4CASE FP

Search across all available documentation for this part.

Obsolete

Central Semiconductor Corp

BRIDGE RECT 1P 200V 25A 4CASE FP

Technical Specifications

Parameters and characteristics for this part

Specification	CBR25-020P

Current - Average Rectified (Io)	25 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	QC Terminal
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	4-Square, FP
Supplier Device Package	4-Case FP
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.2 V
Voltage - Peak Reverse (Max) [Max]	200 V

Part	Package / Case	Current - Reverse Leakage @ Vr	Supplier Device Package	Diode Type	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Average Rectified (Io)	Technology	Mounting Type
Central Semiconductor Corp CBR25-020P	4-Square FP	10 µA	4-Case FP	Single Phase	1.2 V	200 V	150 °C	-65 °C	25 A	Standard	QC Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 200 V QC Terminal 4-Case FP

Technical documentation and resources

No documents available
