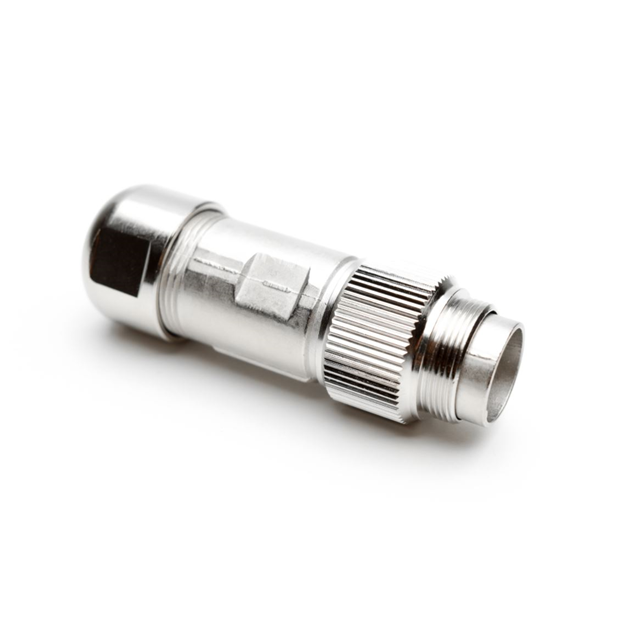

C091 11H008 000 4

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 8POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 8POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11H008 000 4

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Features	Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-8
Shielding	Shielded
Type	For Male Pins

Part	Shell Material	Shell Size - Insert	Housing Color	Note	Shielding	Type	Contact Shape	Features	Insert Material	Connector Type	Mounting Type	Contact Type	Shell Finish	Material Flammability Rating	Orientation	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Contact Size	Number of Positions	Includes
Amphenol Tuchel Industrial C091 11H008 000 4	Zinc Die Cast	M16-8	Silver	Contacts Not Included	Shielded	For Male Pins	Circular	Backshell Coupling Nut	Thermoplastic	Plug Housing	Free Hanging (In-Line)	Crimp	Nickel	UL94 V-0	Keyed	IP68 - Dust Tight Waterproof	100 °C	-40 °C	1.5 mm	8
Amphenol Tuchel Industrial C091 11H008 000 2	Die Cast	M16-8	Silver	Contacts Not Included	Shielded	For Male Pins	Circular	Backshell Cable Clamp Coupling Nut	Thermoplastic	Plug Housing	Free Hanging (In-Line)	Crimp	Nickel	UL94 V-0	Keyed	IP65 IP67 IP69K	100 °C	-40 °C	1.5 mm	8	1 Backshell 1 Cable Nut 1 Connector 1 Gasket 2 pc Cable Clamp 2 Screws 2 Washers

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 12.93

General part information

8 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
