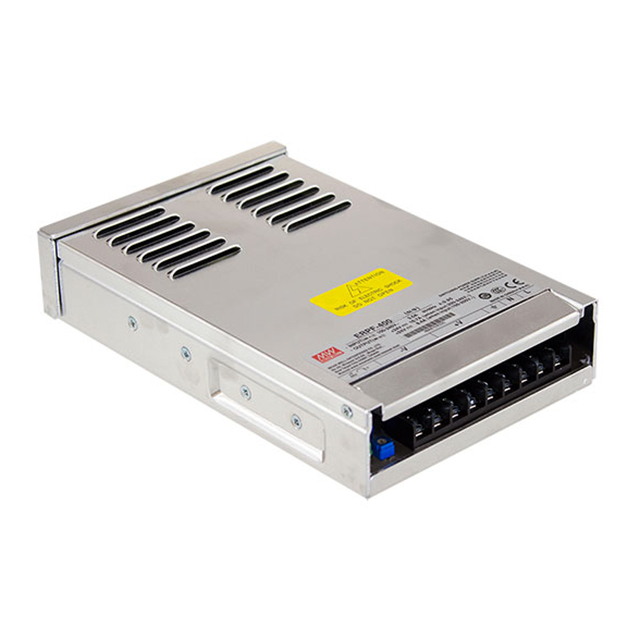

ERPF-400-24
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 24V 401W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ERPF-400-24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, CCC, TUV |
| Current - Output 1 | 16.7 A |
| Efficiency | 90 % |
| Features | PFC, Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 401 W |
| Size / Dimension [x] | 8.68 " |
| Size / Dimension [x] | 220.4 mm |
| Size / Dimension [y] | 5.12 " |
| Size / Dimension [y] | 130 mm |
| Size / Dimension [z] | 1.89 " |
| Size / Dimension [z] | 48 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 56.36 | |
| 5 | $ 53.10 | |||
| 10 | $ 51.75 | |||
| 25 | $ 50.03 | |||
Description
General part information
ERPF-400 Series
Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC, 127 ~ 370 VDC Input
