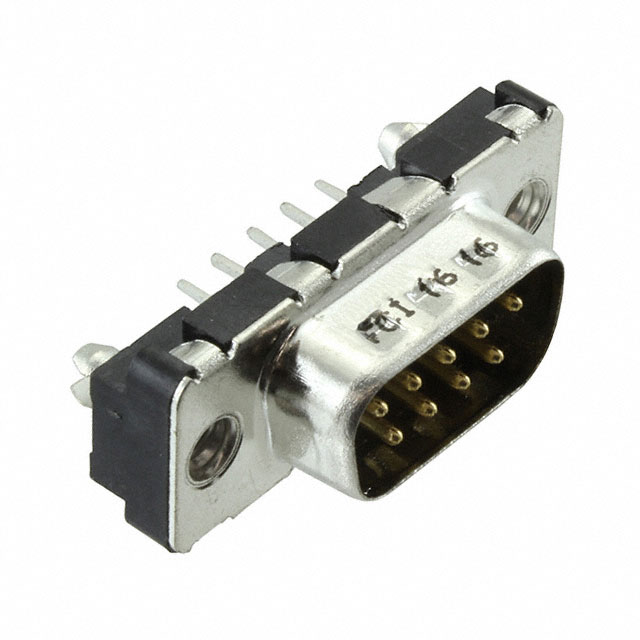

LD09P24A4GX00LF

Active

Amphenol ICC (FCI)

CONN D-SUB PLUG 9POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN D-SUB PLUG 9POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	LD09P24A4GX00LF

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic
Features	Grounding Indents, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	250 VDC

Part	Connector Style	Features	Connector Type	Current Rating (Amps)	Material Flammability Rating	Shell Material, Finish	Number of Rows	Contact Type	Contact Finish Thickness	Contact Material	Number of Positions	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Color	Termination	Flange Feature	Mounting Type	Voltage Rating
Amphenol ICC (FCI) LD09P24A4GX00LF	D-Sub	Board Lock Grounding Indents	Male Pins Plug	5 A	UL94 V-0	Steel Tin-Nickel Plated	2	Signal	Flash	Copper Alloy	9	Thermoplastic	DE E	1	Gold	105 ░C	-55 °C	Black	Solder	Housing/Shell (4-40)	Through Hole	250 VDC
