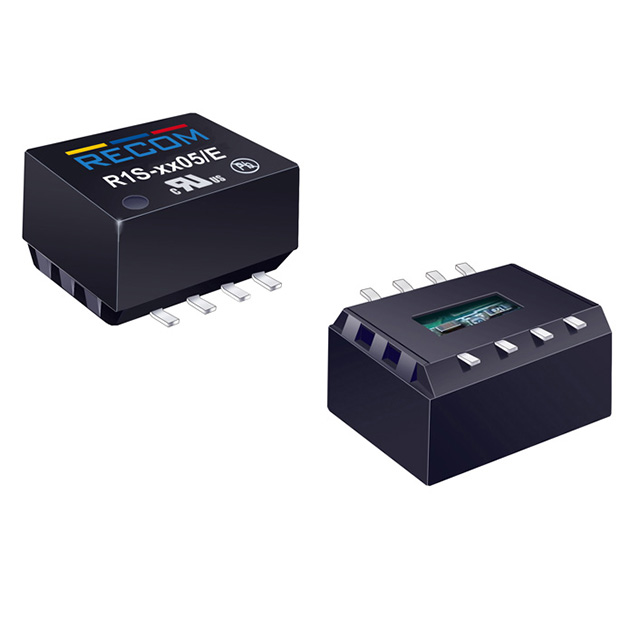

R1S-0505/EHP

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 1W 05VIN 05VOUT CONV DC/DC

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R1S-0505/EHP

Applications	ITE (Commercial)
Current - Output (Max) [Max]	200 mA
Efficiency	80 %
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SMD Module, 5 Leads
Size / Dimension [x]	0.5 in
Size / Dimension [x]	12.8 mm
Size / Dimension [y]	10.7 mm
Size / Dimension [y]	0.42 "
Size / Dimension [z]	6.7 mm
Size / Dimension [z]	0.26 "
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	2000 V
Voltage - Output 1	5 V

R1S8-2405 Series

Isolated DC/DC Converters - SMD 1W DC/DC 1kV UNREG 12Vin 12Vout

Part	Voltage - Output 1	Number of Outputs	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Applications	Mounting Type	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Package / Case	Features	Current - Output (Max) [Max]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]
RECOM Power R1S-3.305/EP	5 V	1	Isolated Module	0.5 in	10.7 mm	6.7 mm	0.42 "	0.26 "	12.8 mm	2.97 V	ITE (Commercial)	Surface Mount	80 %	100 °C	-40 °C	3.63 V	8-SMD Module 5 Leads	SCP	200 mA	1000 V
RECOM Power R1S-2405/EHP-R	5 V	1	Isolated Module	0.5 in	10.7 mm	6.7 mm	0.42 "	0.26 "	12.8 mm	21.6 V	ITE (Commercial)	Surface Mount	80 %	100 °C	-40 °C	26.4 V	8-SMD Module 5 Leads	SCP	200 mA	2000 V
RECOM Power R1S-2405/P	5 V	1	Isolated Module	0.5 in			0.42 "	0.28 "	12.8 mm	21.6 V	ITE (Commercial)	Surface Mount	78 %	100 °C	-40 °C	26.4 V	8-SMD Module 5 Leads	SCP	200 mA	1000 V	10.7 mm	7 mm
RECOM Power R1S-0505/HP	5 V	1	Isolated Module	0.5 in			0.42 "	0.28 "	12.8 mm	4.5 V	ITE (Commercial) Medical	Surface Mount	78 %	100 °C	-40 °C	5.5 V	8-SMD Module 5 Leads	SCP	200 mA	3000 V	10.7 mm	7 mm
RECOM Power R1S-0505/EHP	5 V	1	Isolated Module	0.5 in	10.7 mm	6.7 mm	0.42 "	0.26 "	12.8 mm	4.5 V	ITE (Commercial)	Surface Mount	80 %	100 °C	-40 °C	5.5 V	8-SMD Module 5 Leads	SCP	200 mA	2000 V
RECOM Power R1S8-2405/P-R	5 V	1	Isolated Module	0.5 in			0.42 "	0.28 "	12.8 mm	21.6 V	ITE (Commercial)	Surface Mount	78 %	100 °C	-40 °C	26.4 V	8-SMD Module	SCP	200 mA	1000 V	10.7 mm	7 mm
RECOM Power R1S-0505/H-R	5 V	1	Isolated Module	0.5 in			0.42 "	0.28 "	12.8 mm	4.5 V	ITE (Commercial) Medical	Surface Mount	78 %	100 °C	-40 °C	5.5 V	8-SMD Module 5 Leads	SCP	200 mA	3000 V	10.7 mm	7 mm
RECOM Power R1S8-2405-R	5 V	1	Isolated Module	0.5 in			0.42 "	0.28 "	12.8 mm	21.6 V	ITE (Commercial)	Surface Mount	78 %	100 °C	-40 °C	26.4 V	8-SMD Module	SCP	200 mA	1000 V	10.7 mm	7 mm
RECOM Power R1S8-3.305/E-R	5 V	1	Isolated Module	0.5 in	10.7 mm	6.7 mm	0.42 "	0.26 "	12.8 mm	2.97 V	ITE (Commercial)	Surface Mount	80 %	100 °C	-40 °C	3.63 V	8-SMD Module	SCP	200 mA	1000 V
RECOM Power R1S8-0505/E-R	5 V	1	Isolated Module	0.5 in	10.7 mm	6.7 mm	0.42 "	0.26 "	12.8 mm	4.5 V	ITE (Commercial)	Surface Mount	80 %	100 °C	-40 °C	5.5 V	8-SMD Module	SCP	200 mA	1000 V
