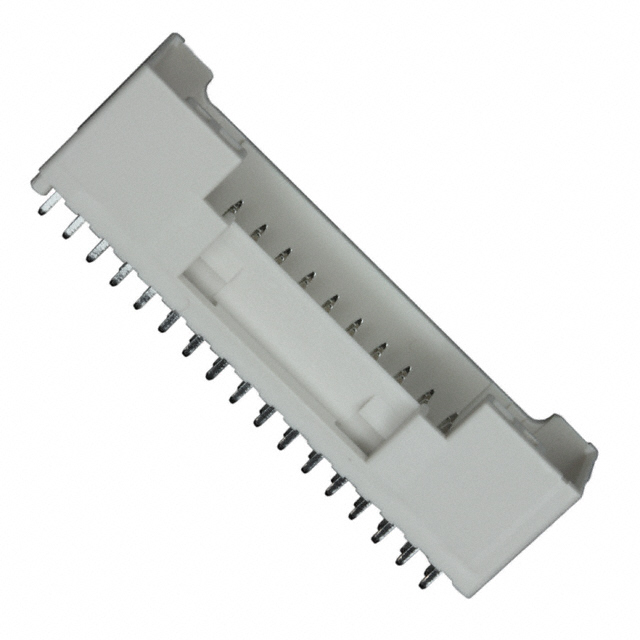

B34B-PUDSS-1

Active

JST Sales America Inc.

CONN HEADER VERT 34POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 34POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B34B-PUDSS-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	11 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Row Spacing - Mating	Row Spacing - Mating	Style	Termination	Material Flammability Rating	Contact Shape	Number of Positions	Current Rating (Amps)	Fastening Type	Shrouding	Mounting Type	Connector Type	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Voltage Rating	Features	Number of Rows	Mated Stacking Heights	Insulation Color	Contact Type	Number of Positions Loaded	Insulation Material	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]
JST Sales America Inc. B34B-PUDSS-1	0.079 in	2 mm	Board to Cable/Wire	Solder	UL94 V-0	Square	34	3 A	Latch Holder	Shrouded - 4 Wall	Through Hole	Header	Copper Alloy	0.079 in	2 mm	0.122 "	3.1 mm	250 VDC	Board Guide	2	11 mm	Natural	Male Pin	All	Polyamide (PA66) Nylon 6/6 Glass Filled	Tin	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 34 position 0.079" (2.00mm)
