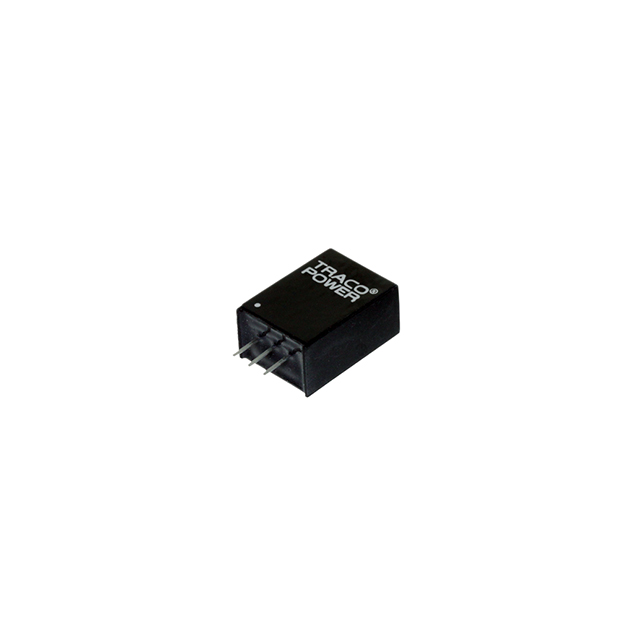

TSN 1-2490

Active

Traco Power

DC DC CONVERTER -9V 9W

Search across all available documentation for this part.

Active

Traco Power

DC DC CONVERTER -9V 9W

Technical Specifications

Parameters and characteristics for this part

Specification	TSN 1-2490

Applications	ITE (Commercial)
Current - Output (Max) [Max]	1 A
Efficiency	94.5 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Power (Watts)	9 W
Size / Dimension [x]	11.7 mm
Size / Dimension [x]	0.46 in
Size / Dimension [y]	0.3 "
Size / Dimension [y]	7.5 mm
Size / Dimension [z]	0.65 in
Size / Dimension [z]	16.5 mm
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	-32 V
Voltage - Input (Min) [Min]	-11.5 V
Voltage - Output 1	-9 V

Part	Current - Output (Max) [Max]	Efficiency	Type	Power (Watts)	Mounting Type	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Applications	Features
Traco Power TSN 1-24150A	1 A	96 %	Linear Regulator Replacement	15 W	Through Hole	-18 V	85 °C	-40 °C	1	-32 V	-15 V	0.3 "	11.7 mm	7.5 mm	0.46 "	16.5 mm	0.65 in	3-SIP Module	ITE (Commercial)	SCP
Traco Power TSN 1-2452	1 A	92 %	Linear Regulator Replacement	5.2 W	Through Hole	-7 V	85 °C	-40 °C	1	-32 V	-5.2 V	0.65 in	7.5 mm	16.5 mm	0.3 "	11.7 mm	0.46 in	3-SIP Module	ITE (Commercial)	SCP
Traco Power TSN 1-2490	1 A	94.5 %	Linear Regulator Replacement	9 W	Through Hole	-11.5 V	85 °C	-40 °C	1	-32 V	-9 V	0.65 in	7.5 mm	16.5 mm	0.3 "	11.7 mm	0.46 in	3-SIP Module	ITE (Commercial)	SCP
Traco Power TSN 1-2480	1 A	94 %	Linear Regulator Replacement	8 W	Through Hole	-10.5 V	85 °C	-40 °C	1	-32 V	-8 V	0.65 in	7.5 mm	16.5 mm	0.3 "	11.7 mm	0.46 in	3-SIP Module	ITE (Commercial)	SCP
Traco Power TSN 1-2490A	1 A	94.5 %	Linear Regulator Replacement	9 W	Through Hole	-11.5 V	85 °C	-40 °C	1	-32 V	-9 V	0.3 "	11.7 mm	7.5 mm	0.46 "	16.5 mm	0.65 in	3-SIP Module	ITE (Commercial)	SCP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Regulator Replacement DC DC Converter 1 Output -9V 1A -11.5V - -32V Input
