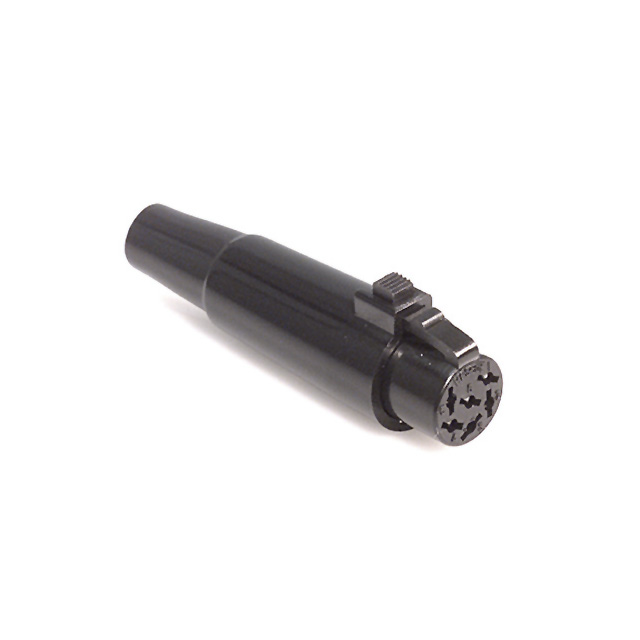

RPC1-12P-6S(03)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 6POS SOLDER

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 6POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	RPC1-12P-6S(03)

null

Part	Number of Positions	Contact Finish - Mating	Mounting Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shielding	Shell Size - Insert	Primary Material	Termination	Current Rating (Amps)	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Insert Material	Backshell Material, Plating	Voltage Rating	Features
Hirose Electric USA, Inc. RPC1-12P-6S(03)
Hirose Electric USA, Inc. RPC1-12P-6S(73)
Hirose Electric USA, Inc. RPC1-12P-6S(71)	6	Silver	Free Hanging (In-Line)	Phosphor Bronze	-10 °C	60 °C	Snap-In	Unshielded	12	Plastic	Solder Tabs	5 A	Gray	157.5 µin	4 µm	Female Sockets Plug	Polyacetal	Nylon Polyamide (PA)	500 VAC	Backshell Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Position Circular Connector

Technical documentation and resources
