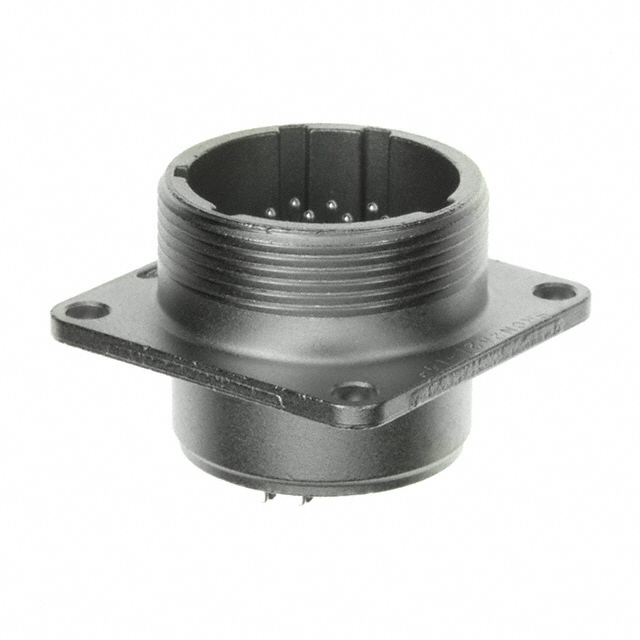

SRCN2A21-16P
ActiveJAE Electronics
CONN RCPT MALE 16P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
SRCN2A21-16P
ActiveJAE Electronics
CONN RCPT MALE 16P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRCN2A21-16P |
|---|---|
| Applications | Communication Systems, Telecommunications, Test Equipment & Measurement |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Insert Material | Plastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Number of Positions | 16 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 21-16 |
| Voltage Rating | 350 V, 250 VAC |
SRCN2A21 Series
| Part | Applications | Material Flammability Rating | Contact Material | Shell Finish | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Number of Positions | Connector Type | Shell Material | Primary Material | Contact Finish - Mating | Insert Material | Voltage Rating | Color | Mounting Feature | Current Rating (Amps) | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | Communication Systems Telecommunications Test Equipment & Measurement | UL94 V-0 | Copper Alloy | Nickel | N | -25 °C | 85 °C | 21-16 | 16 | Receptacle Female Sockets | Aluminum Alloy | Metal | |||||||
JAE Electronics | Communication Systems Telecommunications Test Equipment & Measurement | UL94 V-0 | Copper Alloy | Nickel | N | -25 °C | 85 °C | 21-16 | 16 | Male Pins Receptacle | Aluminum Alloy | Metal | Silver | Plastic | 250 VAC 350 V | Silver | Flange | 5 A | |
JAE Electronics | Communication Systems Telecommunications Test Equipment & Measurement | UL94 V-0 | Copper Alloy | Nickel | N | -25 °C | 85 °C | 21-10 | Receptacle Female Sockets | Aluminum Alloy | Metal | Silver | Plastic | 250 VAC 350 V | Silver | Flange | 10 A | 10 | |
JAE Electronics | Communication Systems Telecommunications Test Equipment & Measurement | UL94 V-0 | Copper Alloy | Nickel | N | -25 °C | 85 °C | 21-10 | Male Pins Receptacle | Aluminum Alloy | Metal | Silver | Plastic | 250 VAC 350 V | Silver | Flange | 10 A | 10 | |
JAE Electronics |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.81 | |
| 10 | $ 7.06 | |||
| 100 | $ 6.18 | |||
| 1000 | $ 4.55 | |||
Description
General part information
SRCN2A21 Series
16 Position Circular Connector Receptacle, Male Pins Solder Cup
