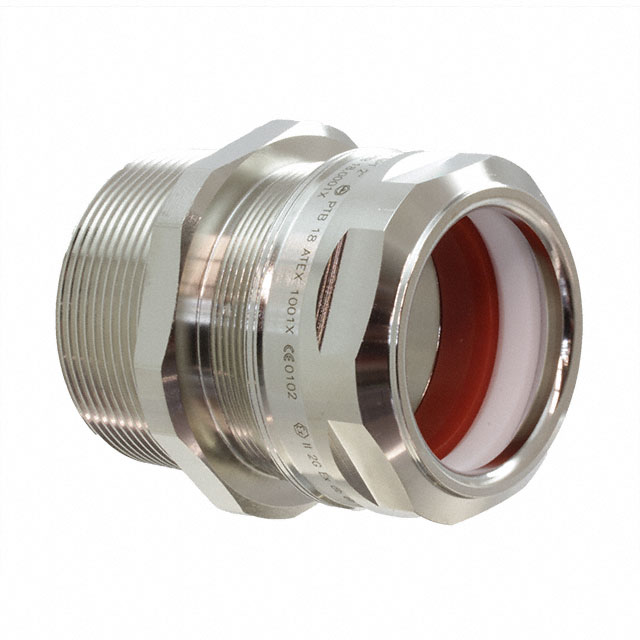

LEX3200MSHTS

Active

Pflitsch

CABLE GLAND 33-45MM 2" NPT BRASS

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 33-45MM 2" NPT BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	LEX3200MSHTS

Color	Silver
Ingress Protection	IP66/IP68
Material	Brass, Nickel Plated
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max) [Max] [diameter]	1.772 in
Outside Cable Diameter (Max) [Max] [diameter]	45 mm
Outside Cable Diameter (Min) [Min] [diameter]	33 mm
Outside Cable Diameter (Min) [Min] [diameter]	1.299 in
Thread Length	27 mm
Thread Length	1.063 in
Thread Size	2 in
Type	Cable Gland

Part	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Ingress Protection	Type	Color
Pflitsch LEX3200MSHTS	2 in	130 °C	-60 °C	33 mm	1.299 in	27 mm	1.063 in	1.772 in	45 mm	Brass Nickel Plated	IP66/IP68	Cable Gland	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated 2" NPT Silver
