Q-040200003.25M

Active

Amphenol Custom Cable

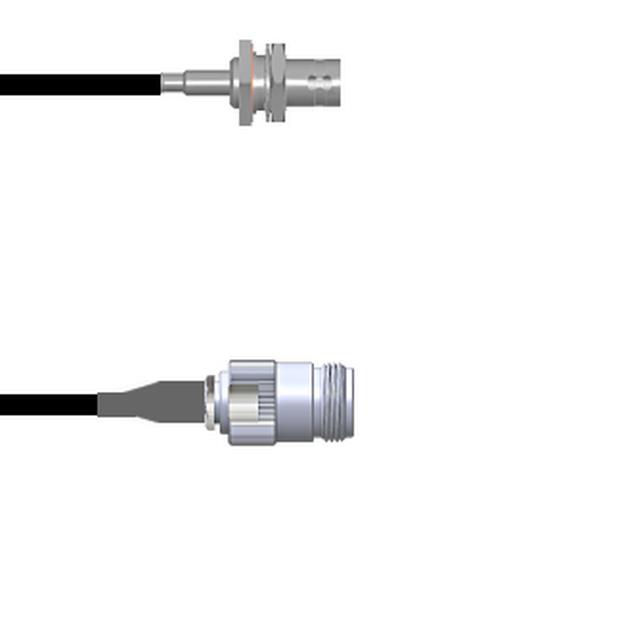

CBL ASSY BNC-NTYPE JK-JK 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-040200003.25M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-040200 Series

Part	Color	Overall Impedance	Style	Cable Type	Features	2nd Connector	1st Connector Mounting Type	2nd Contact Gender	1st Connector Mounting Feature	2nd Connector Mounting Type	Length	Length	1st Contact Gender	Frequency - Max [Max]	1st Connector	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-040200003003i	Black	50 Ohms	BNC to N-Type	RG-174	Shielded	N-Type Jack	Panel Mount	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	3 in	76.2 mm	Female	4 GHz	BNC Jack
Amphenol Custom Cable Q-040200003006i	Black	50 Ohms	BNC to N-Type	RG-174	Shielded	N-Type Jack	Panel Mount	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	6 in	152.4 mm	Female	4 GHz	BNC Jack
Amphenol Custom Cable Q-040200003003M	Black	50 Ohms	BNC to N-Type	RG-174	Shielded	N-Type Jack	Panel Mount	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	118.1 in	3 m	Female	4 GHz	BNC Jack	9.8 '
Amphenol Custom Cable Q-040200003024i	Black	50 Ohms	BNC to N-Type	RG-174	Shielded	N-Type Jack	Panel Mount	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	24 "	609.6 mm	Female	4 GHz	BNC Jack
Amphenol Custom Cable Q-040200003.25M	Black	50 Ohms	BNC to N-Type	RG-174	Shielded	N-Type Jack	Panel Mount	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)			Female	4 GHz	BNC Jack		9.843 "	250 mm
Amphenol Custom Cable Q-040200005084i	Copper	50 Ohms	BNC to N-Type	RG-316	Shielded	N-Type Jack	Panel Mount	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	84 in	2.1 m	Female	4 GHz	BNC Jack	7 ft
Amphenol Custom Cable Q-040200005012i	Copper	50 Ohms	BNC to N-Type	RG-316	Shielded	N-Type Jack	Panel Mount	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	12 "	304.8 mm	Female	4 GHz	BNC Jack
Amphenol Custom Cable Q-040200005.25M	Copper	50 Ohms	BNC to N-Type	RG-316	Shielded	N-Type Jack	Panel Mount	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)			Female	4 GHz	BNC Jack		9.843 "	250 mm
Amphenol Custom Cable Q-040200003009i	Black	50 Ohms	BNC to N-Type	RG-174	Shielded	N-Type Jack	Panel Mount	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	9 "	228.6 mm	Female	4 GHz	BNC Jack
Amphenol Custom Cable Q-040200005.75M	Copper	50 Ohms	BNC to N-Type	RG-316	Shielded	N-Type Jack	Panel Mount	Female	Bulkhead - Front Side Nut	Free Hanging (In-Line)	29.53 "	750 mm	Female	4 GHz	BNC Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 53.81
		25	$ 52.77
		50	$ 51.72
		100	$ 50.68
		250	$ 49.63

Description

General part information

Q-040200 Series

Cable Assembly Coaxial BNC to N-Type RG-174 9.843" (250.00mm)
