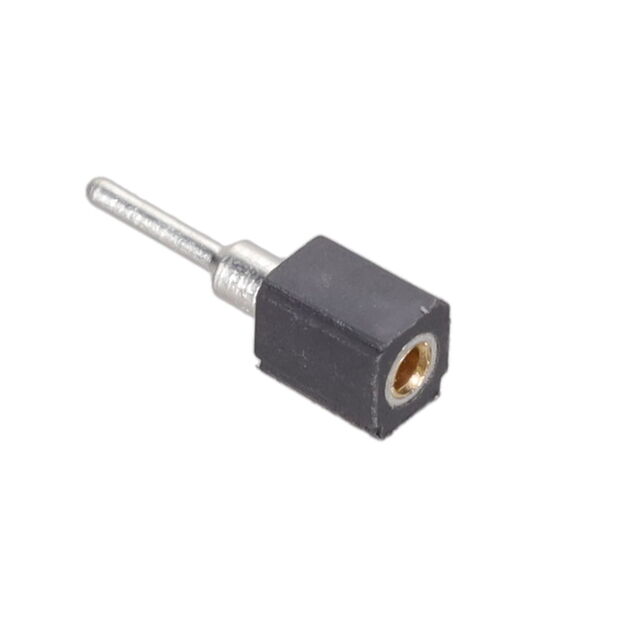

831-41-001-10-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 1POS GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

831-41-001-10-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 1POS GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	831-41-001-10-001000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Termination	Solder

831-41 Series

...

Part	Material Flammability Rating	Insulation Material	Contact Type	Number of Rows	Contact Shape	Contact Finish - Mating	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Insulation Height [z]	Insulation Height [z]	Number of Positions	Current Rating (Amps)	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Number of Positions Loaded	Insulation Height	Insulation Height
Mill-Max Manufacturing Corp. 831-41-028-10-001000	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	1	Circular	Gold	Push-Pull	Receptacle	-55 °C	125 °C	10 çin	0.25 çm	Beryllium Copper	0.165 in	4.2 mm	28	3 A	Through Hole	3.18 mm	0.125 in	Black	Solder	200 µin	5.08 µm	0.079 in	2 mm	Tin	All
Mill-Max Manufacturing Corp. 831-41-043-10-001000	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	1	Circular	Gold	Push-Pull	Receptacle	-55 °C	125 °C	10 çin	0.25 çm	Beryllium Copper	0.165 in	4.2 mm	43	3 A	Through Hole	3.18 mm	0.125 in	Black	Solder	200 µin	5.08 µm	0.079 in	2 mm	Tin	All
Mill-Max Manufacturing Corp. 831-41-012-30-001000	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	1	Circular	Gold	Push-Pull	Receptacle	-55 °C	125 °C	10 çin	0.25 çm	Beryllium Copper			12	3 A	Surface Mount			Black	Solder	200 µin	5.08 µm	0.079 in	2 mm	Tin	All	5.8 mm	0.228 in
Mill-Max Manufacturing Corp. 831-41-020-10-001000	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	1	Circular	Gold	Push-Pull	Receptacle	-55 °C	125 °C	10 çin	0.25 çm	Beryllium Copper	0.165 in	4.2 mm	20	3 A	Through Hole	3.18 mm	0.125 in	Black	Solder	200 µin	5.08 µm	0.079 in	2 mm	Tin	All
Mill-Max Manufacturing Corp. 831-41-040-20-001000	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	1	Circular	Gold	Push-Pull	Receptacle	-55 °C	125 °C	10 çin	0.25 çm	Beryllium Copper			40	3 A	Through Hole Right Angle	3.56 mm	0.14 in	Black	Solder	200 µin	5.08 µm	0.079 in	2 mm	Tin	All	2 mm	0.079 in
Mill-Max Manufacturing Corp. 831-41-024-30-001000	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	1	Circular	Gold	Push-Pull	Receptacle	-55 °C	125 °C	10 çin	0.25 çm	Beryllium Copper			24	3 A	Surface Mount			Black	Solder	200 µin	5.08 µm	0.079 in	2 mm	Tin	All	5.8 mm	0.228 in
Mill-Max Manufacturing Corp. 831-41-032-10-001000	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	1	Circular	Gold	Push-Pull	Receptacle	-55 °C	125 °C	10 çin	0.25 çm	Beryllium Copper	0.165 in	4.2 mm		3 A	Through Hole	3.18 mm	0.125 in	Black	Solder	200 µin	5.08 µm	0.079 in	2 mm	Tin	All
Mill-Max Manufacturing Corp. 831-41-019-30-001000	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	1	Circular	Gold	Push-Pull	Receptacle	-55 °C	125 °C	10 çin	0.25 çm	Beryllium Copper			19	3 A	Surface Mount			Black	Solder	200 µin	5.08 µm	0.079 in	2 mm	Tin	All	5.8 mm	0.228 in
Mill-Max Manufacturing Corp. 831-41-035-30-001000	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	1	Circular	Gold	Push-Pull	Receptacle	-55 °C	125 °C	10 çin	0.25 çm	Beryllium Copper			35	3 A	Surface Mount			Black	Solder	200 µin	5.08 µm	0.079 in	2 mm	Tin	All	5.8 mm	0.228 in
Mill-Max Manufacturing Corp. 831-41-001-10-001000	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	1	Circular	Gold	Push-Pull	Receptacle	-55 °C	125 °C	10 çin	0.25 çm	Beryllium Copper	0.165 in	4.2 mm	1	3 A	Through Hole	3.18 mm	0.125 in	Black	Solder	200 µin	5.08 µm			Tin	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.95
		10	$ 12.36
		100	$ 10.78
		500	$ 9.19
		1000	$ 8.43

Description

General part information

831-41 Series

1 Position Receptacle Connector Through Hole Gold
