VHB150W-Q24-S48

Active

CUI Inc.

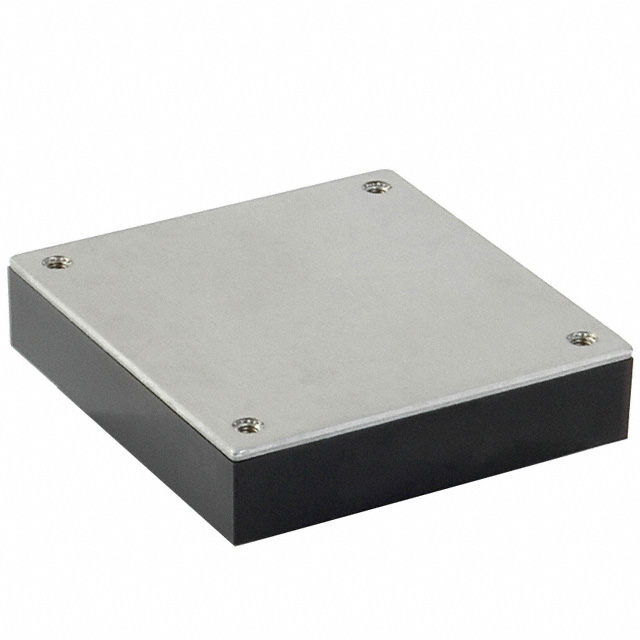

DC DC CONVERTER 48V 150W

Deep-Dive with AI

Search across all available documentation for this part.

VHB150W-Q24-S48

Active

CUI Inc.

DC DC CONVERTER 48V 150W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VHB150W-Q24-S48

Applications	ITE (Commercial)
Approval Agency	UL, EN
Control Features	Active High, Enable
Current - Output (Max) [Max]	3.12 A
Efficiency	84 %
Features	Remote On/Off, UVLO
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	9-DIP Module, 1/2 Brick
Power (Watts)	150 W
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	2.28 in
Size / Dimension [y]	57.9 mm
Size / Dimension [z]	13.2 mm
Size / Dimension [z]	0.52 "
Standard Number	61000-3-3, 60950-1, 61000-6-1, 61000-6-3, 55032 Class A, 61000-3-2
Supplier Device Package	Half Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	48 V

VHB150W Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Isolation	Mounting Type	Features	Standard Number	Voltage - Output 1	Package / Case	Approval Agency	Supplier Device Package	Number of Outputs	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Efficiency	Applications	Control Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Type
CUI Inc. VHB150W-Q48-S15	100 °C	-40 °C	150 W	1.5 kV	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	15 V	9-DIP Module 1/2 Brick	EN UL	Half Brick	1	75 V	10 A	90 %	ITE (Commercial)	Active High Enable	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	18 V	Isolated Module
CUI Inc. VHB150W-Q24-S48	100 °C	-40 °C	150 W	1.5 kV	Through Hole	Remote On/Off UVLO	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	48 V	9-DIP Module 1/2 Brick	EN UL	Half Brick	1	36 V	3.12 A	84 %	ITE (Commercial)	Active High Enable	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	9 V	Isolated Module
CUI Inc. VHB150W-Q48-S28	100 °C	-40 °C	150 W	1.5 kV	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	28 V	9-DIP Module 1/2 Brick	EN UL	Half Brick	1	75 V	5.4 A	88 %	ITE (Commercial)	Active High Enable	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	18 V	Isolated Module
CUI Inc. VHB150W-Q24-S24	100 °C	-40 °C	150 W	1.5 kV	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	24 V	9-DIP Module 1/2 Brick	EN UL	Half Brick	1	36 V	6.5 A	88 %	ITE (Commercial)	Active High Enable	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	9 V	Isolated Module
CUI Inc. VHB150W-Q24-S12	100 °C	-40 °C	150 W	1.5 kV	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	12 V	9-DIP Module 1/2 Brick	EN UL	Half Brick	1	36 V	12.5 A	88 %	ITE (Commercial)	Active High Enable	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	9 V	Isolated Module
CUI Inc. VHB150W-Q24-S3R3	100 °C	-40 °C	99 W	1.5 kV	Through Hole	OCP OTP OVP Remote On/Off SCP	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	3.3 V	9-DIP Module 1/2 Brick	EN UL	Half Brick	1	36 V	30 A	85 %	ITE (Commercial)	Active High Enable	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	9 V	Isolated Module
CUI Inc. VHB150W-Q48-S48	100 °C	-40 °C	150 W	1.5 kV	Through Hole	Remote On/Off UVLO	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	48 V	9-DIP Module 1/2 Brick	EN UL	Half Brick	1	75 V	3.12 A	87 %	ITE (Commercial)	Active High Enable	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	18 V	Isolated Module
CUI Inc. VHB150W-Q24-S28	100 °C	-40 °C	150 W	1.5 kV	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3	28 V	9-DIP Module 1/2 Brick	EN UL	Half Brick	1	36 V	5.4 A	87 %	ITE (Commercial)	Active High Enable	2.4 in	13.2 mm	2.28 in	57.9 mm	61 mm	0.52 "	9 V	Isolated Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 162.14
		5	$ 159.52
		12	$ 156.91
		36	$ 146.45
		60	$ 141.22

Description

General part information

VHB150W Series

Isolated Module DC DC Converter 1 Output 48V 3.12A 9V - 36V Input
