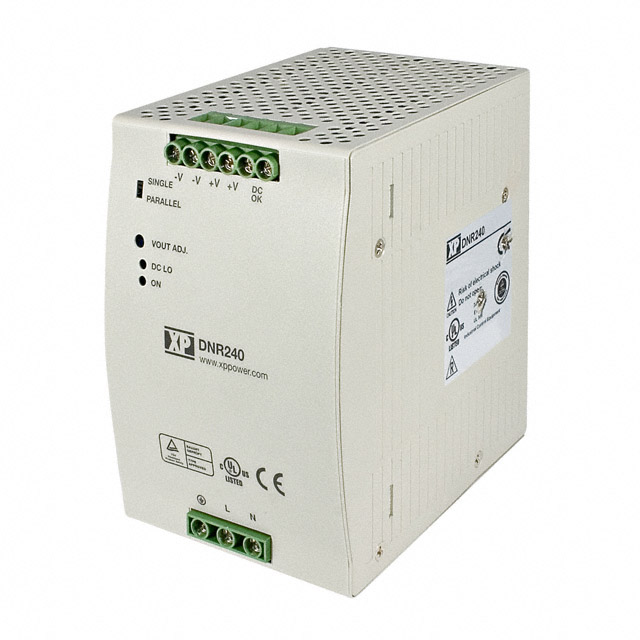

DNR240PS24-I
ActiveXP POWER
AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 240 W, 24 VDC, 10 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DNR240PS24-I |
|---|---|
| AC Voltage - Input [Max] | 264 VAC, 132 VAC |
| AC Voltage - Input [Min] | 90 VAC, 180 VAC |
| Applications | ITE (Commercial), Industrial, Hazardous Locations |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 10 A |
| Efficiency | 89 % |
| Features | Adjustable Output, Universal Input |
| Input Type | AC |
| Minimum Load Required | False |
| Number of Outputs | 1 |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 111.3 mm |
| Size / Dimension [x] | 4.38 in |
| Size / Dimension [y] | 83 mm |
| Size / Dimension [y] | 3.27 " |
| Size / Dimension [z] | 125 mm |
| Size / Dimension [z] | 4.92 in |
| Standard Number | 62368-1 |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DNR240 Series
The DNR series are DIN-rail mount Power Supplies featuring a rugged design for industrial applications, wide adjustment range. No minimum load required, convection-cooled with 25mm free space all sides.
