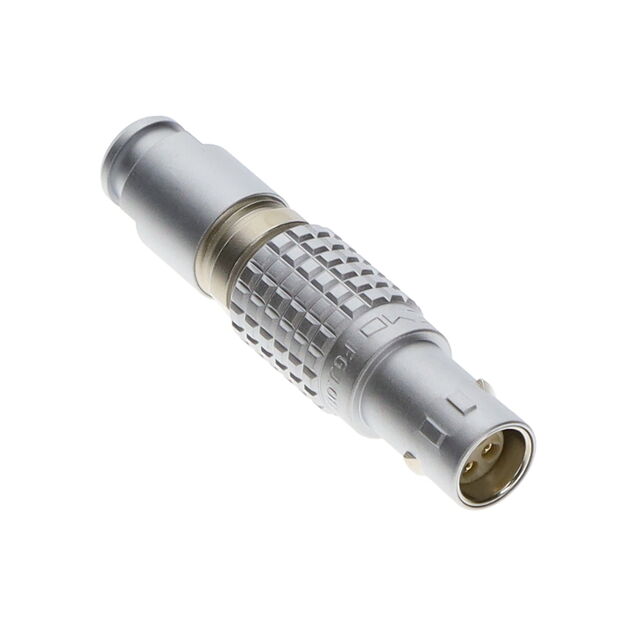

FGJ.0B.304.CLLD52Z
ActiveLEMO
CONN PLUG FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FGJ.0B.304.CLLD52Z
ActiveLEMO
CONN PLUG FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FGJ.0B.304.CLLD52Z |
|---|---|
| Backshell Material, Plating | Brass, Chrome |
| Cable Opening [diameter] | 0.205 in, 0.165 in |
| Cable Opening [diameter] | 4.2 mm |
| Cable Opening [diameter] | 5.2 mm |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám |
| Contact Material | Bronze |
| Current Rating (Amps) | 7 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | J |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shell Size - Insert | 304 |
| Shielding | Shielded |
FGJ.0B Series
| Part | Current Rating (Amps) | Mounting Type | Color | Backshell Material, Plating | Shielding | Features | Ingress Protection | Fastening Type | Contact Material | Shell Material | Orientation | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insert Material | Shell Size - Insert | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Primary Material | Shell Finish | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Number of Positions | Termination | Type | Note | Contact Size | Contact Type | Contact Shape | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
8 A | Free Hanging (In-Line) | Silver | Brass Chrome | Shielded | Backshell | IP50 | Push-Pull | Bronze | Brass | J | UL94 V-0 | 59 Áin | 1.5 Ám | Polyetheretherketone (PEEK) | 303 | 0.126 in | 4.2 mm | 0.165 in | 3.2 mm | Metal | Chrome | Female Sockets Plug | -55 °C | 250 °C | Gold | ||||||||||||
2 A | Free Hanging (In-Line) | Silver | Brass Chrome | Shielded | Backshell | IP50 | Push-Pull | Bronze | Brass | J | UL94 V-0 | 59 Áin | 1.5 Ám | Polyetheretherketone (PEEK) | 309 | Metal | Chrome | Female Sockets Plug | -55 °C | 250 °C | Gold | 0.165 in 0.205 in | 4.2 mm | 5.2 mm | 9 | ||||||||||||
7 A | Free Hanging (In-Line) | Silver | Brass Chrome | Shielded | Backshell | IP50 | Push-Pull | Bronze | Brass | J | UL94 V-0 | 59 Áin | 1.5 Ám | Polyetheretherketone (PEEK) | 304 | Metal | Chrome | Female Sockets Plug | -55 °C | 250 °C | Gold | 0.165 in 0.205 in | 4.2 mm | 5.2 mm | 4 | ||||||||||||
10 A | Free Hanging (In-Line) | Silver | Brass Chrome | Shielded | Backshell | IP50 | Push-Pull | Bronze | Brass | J | UL94 V-0 | 59 Áin | 1.5 Ám | Polyetheretherketone (PEEK) | 302 | 0.126 in | 4.2 mm | 0.165 in | 3.2 mm | Metal | Chrome | Female Sockets Plug | -55 °C | 250 °C | Gold | 2 | |||||||||||
7 A | Free Hanging (In-Line) | Silver | Brass Chrome | Shielded | Backshell | IP50 | Push-Pull | Bronze | Brass | J | UL94 V-0 | 59 Áin | 1.5 Ám | Polyetheretherketone (PEEK) | 304 | 0.126 in | 4.2 mm | 0.165 in | 3.2 mm | Metal | Chrome | Female Sockets Plug | -55 °C | 250 °C | Gold | 4 | |||||||||||
10 A | Free Hanging (In-Line) | Silver | Brass Chrome | Shielded | Backshell | IP50 | Push-Pull | Bronze | Brass | J | UL94 V-0 | 59 Áin | 1.5 Ám | Polyetheretherketone (PEEK) | 302 | 0.126 in | 4.2 mm | 0.165 in | 3.2 mm | Metal | Chrome | Female Sockets Plug | -55 °C | 250 °C | Gold | 2 | Crimp | ||||||||||
7 A | Free Hanging (In-Line) | Silver | Brass Chrome | Shielded | Backshell | IP50 | Push-Pull | Bronze | Brass | J | UL94 V-0 | 59 Áin | 1.5 Ám | Polyetheretherketone (PEEK) | 304 | Metal | Chrome | Female Sockets Plug | -55 °C | 250 °C | Gold | 0.165 in 0.205 in | 4.2 mm | 5.2 mm | 4 | ||||||||||||
2.5 A | Free Hanging (In-Line) | Silver | Brass Chrome | Shielded | Backshell | IP50 | Push-Pull | Bronze | Brass | J | UL94 V-0 | 59 Áin | 1.5 Ám | Polyetheretherketone (PEEK) | 306 | Metal | Chrome | Female Sockets Plug | -55 °C | 250 °C | Gold | 0.165 in 0.205 in | 4.2 mm | 5.2 mm | 6 | ||||||||||||
LEMO | Free Hanging (In-Line) | Shielded | Backshell | IP50 | Detent Lock Push-Pull | Brass | J | Polyetheretherketone (PEEK) | 305 | Chrome | Plug Housing | -55 °C | 250 °C | For Female Sockets | Contacts Not Included | 0.7 mm | Crimp | Circular | Silver | ||||||||||||||||||
8 A | Free Hanging (In-Line) | Silver | Brass Chrome | Shielded | Backshell | IP50 | Push-Pull | Bronze | Brass | J | UL94 V-0 | 59 Áin | 1.5 Ám | Polyetheretherketone (PEEK) | 303 | Metal | Chrome | Female Sockets Plug | -55 °C | 250 °C | Gold | 0.165 in 0.205 in | 4.2 mm | 5.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 38.81 | |
| 10 | $ 33.98 | |||
| 25 | $ 32.52 | |||
| 50 | $ 31.47 | |||
| 100 | $ 30.42 | |||
| 250 | $ 28.74 | |||
Description
General part information
FGJ.0B Series
4 Position Circular Connector Plug, Female Sockets Solder Cup
