19504 B59250

Active

Belden Inc.

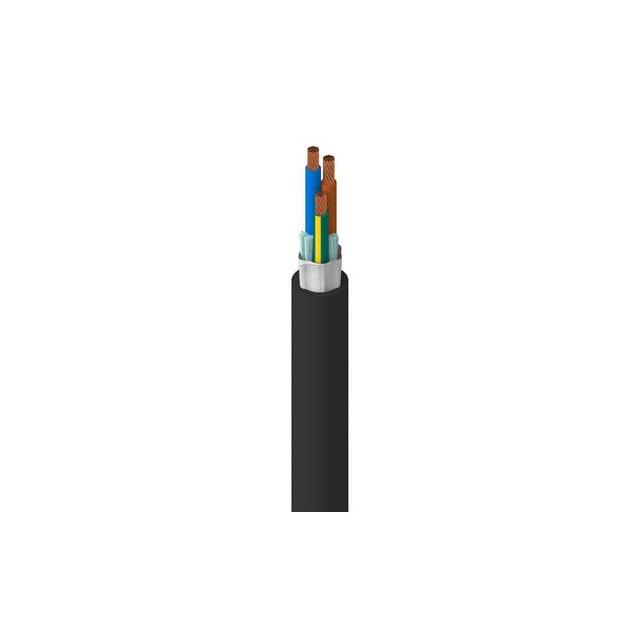

CABLE 3COND 16AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 16AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	19504 B59250

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	65
Jacket (Insulation) Diameter [diameter]	10.29 mm
Jacket (Insulation) Diameter [diameter]	0.405 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.778 mm
Jacket (Insulation) Thickness	0.07 in
Jacket Color	Black
Length	3000 "
Length	76.2 m
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-35 °C
Ratings	UL Style STOW
Usage	Cord and Cordset
Voltage	600 V
Wire Gauge	16 AWG

Part	Length	Length	Conductor Insulation	Conductor Material	Ratings	Usage	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Jacket Color	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage
Belden Inc. 19504 B59250	3000 "	76.2 m	Poly-Vinyl Chloride (PVC)	Copper Bare	UL Style STOW	Cord and Cordset	16 AWG	1.778 mm	0.07 in	34 AWG	65	3	Black	Multi-Conductor	-35 °C	105 ░C	Poly-Vinyl Chloride (PVC)	10.29 mm	0.405 in	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 6.61

General part information

3 Conductor Multi-Conductor Cable Black 16 AWG 250.0' (76.2m)
