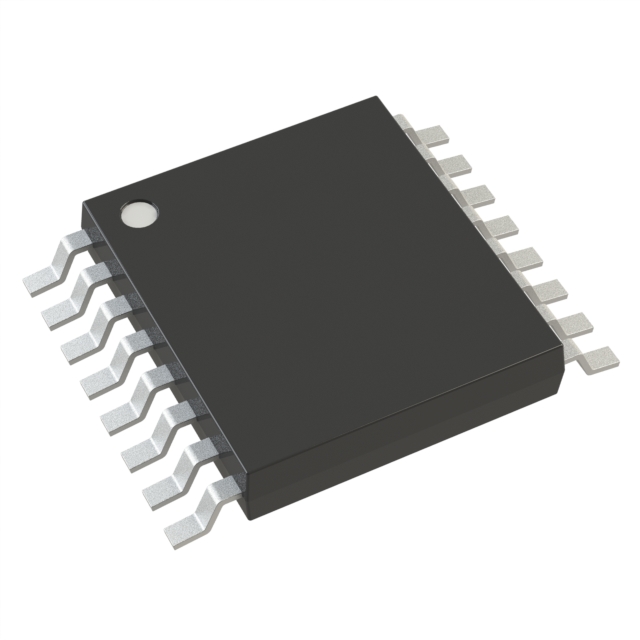

SC16IS740IPW,112
LTBFreescale Semiconductor - NXP
IC UART SINGLE W/FIFO 16-TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SC16IS740IPW,112
LTBFreescale Semiconductor - NXP
IC UART SINGLE W/FIFO 16-TSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SC16IS740IPW,112 |
|---|---|
| Current - Supply | 6 mA |
| Function | Controller |
| Interface | SPI, UART, I2C |
| Operating Temperature [Max] | 203 °F |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-TSSOP |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Protocol | RS232, RS485 |
| Supplier Device Package | 16-TSSOP |
| Voltage - Supply | 2.5 V, 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.53 | |
| 10 | $ 3.17 | |||
| 96 | $ 2.60 | |||
| 192 | $ 1.83 | |||
| 288 | $ 2.46 | |||
| 576 | $ 2.21 | |||
| 1056 | $ 1.86 | |||
| 2592 | $ 1.77 | |||
| 5088 | $ 1.70 | |||
Description
General part information
SC16IS740 Series
RS232, RS485 Controller I2C, SPI, UART Interface 16-TSSOP
