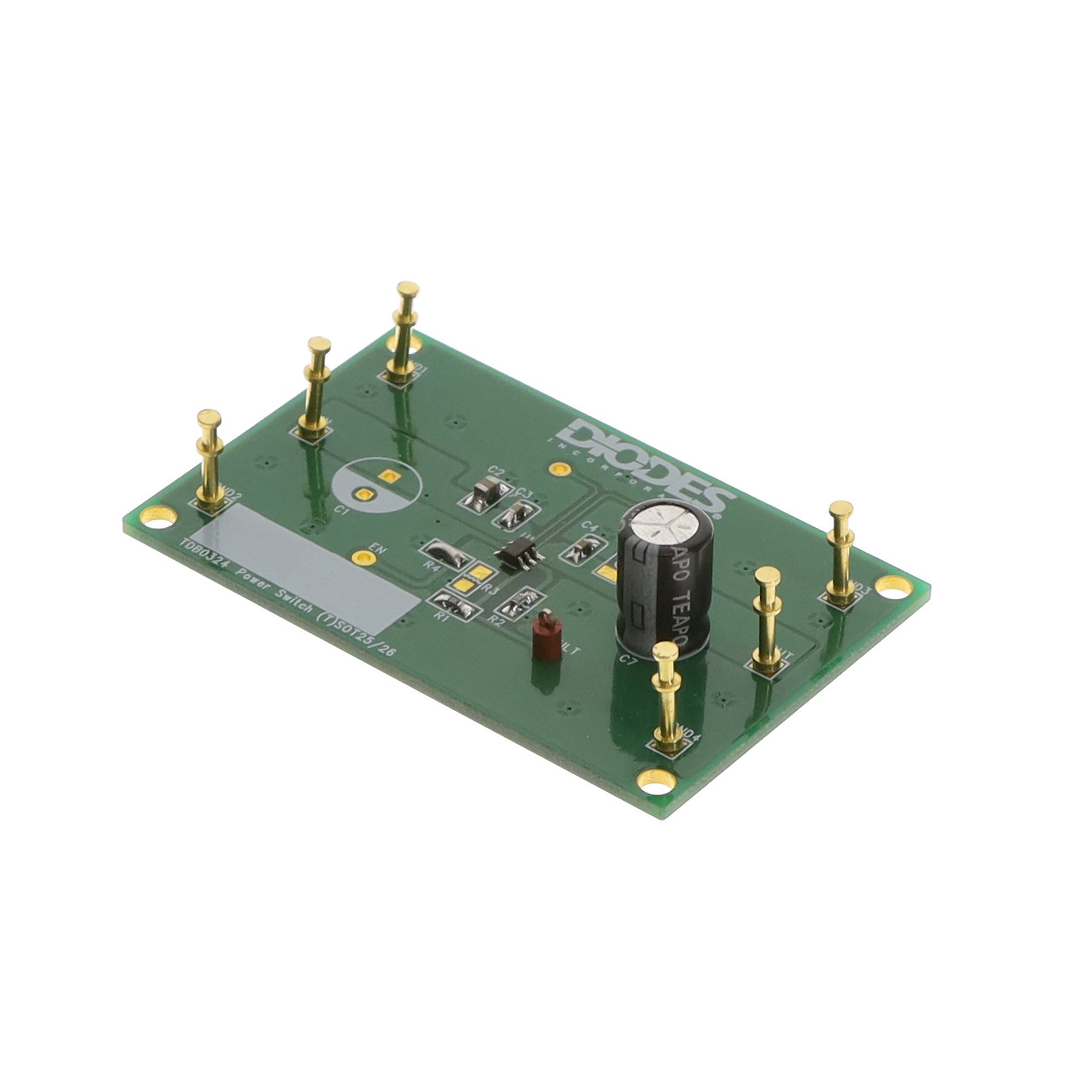

AP22652W6-EVM

Active

Diodes Inc

EVAL BOARD FRO AP22652

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AP22652W6-EVM

Active

Diodes Inc

EVAL BOARD FRO AP22652

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP22652W6-EVM

Contents	Board(s)
Function	Power Distribution Switch (Load Switch)
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	AP22652

AP22652A Series

Precision Adjustable Current-Limited Power Switches

Part	Utilized IC / Part	Function	Contents	Type	Supplied Contents	Operating Temperature [Max]	Operating Temperature [Min]	Rds On (Typ)	Output Configuration	Supplier Device Package	Ratio - Input:Output [custom]	Current - Output (Max) [Max]	Fault Protection	Interface	Voltage - Load [Min]	Voltage - Load [Max]	Number of Outputs	Features	Output Type	Switch Type	Mounting Type	Input Type
Diodes Inc AP22652FDZ-EVM	AP22652	Power Distribution Switch (Load Switch)	Board(s)	Power Management	Board(s)
Diodes Inc AP22652W6-EVM	AP22652	Power Distribution Switch (Load Switch)	Board(s)	Power Management	Board(s)
Diodes Inc AP22652AFDZ-7						85 °C	-40 °C	65 mOhm	High Side	W-DFN2020-6 (Type A1)	1:1	2.1 A	Current Limiting (Adjustable) Over Temperature Over Voltage Reverse Current Short Circuit UVLO	On/Off	3 V	5.5 V	1	Load Discharge Slew Rate Controlled Status Flag	P-Channel	USB Switch	Surface Mount	Inverting

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 57.14

Description

General part information

AP22652A Series

The AP22652, AP22653, AP22652A, and AP22653A are single-channel, precision-adjustable, current-limited switches optimized for applications that require precision current limiting, or to provide up to 2.1A of continuous load current during heavy loads/short circuits. These devices offer a programmable current-limit threshold between 125mA and 2665mA (typ) via an external resistor. Current-limit accuracy ±10% can be achieved at high current-limit settings.

Documents

Technical documentation and resources
