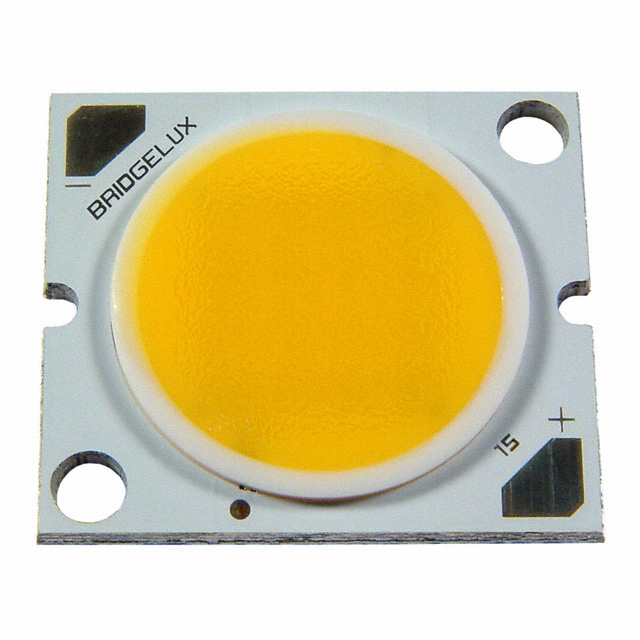

BXRA-N0800-00000

Obsolete

BRIDGELUX

LED COB LED ARRAY WHT SQ 4100K

Search across all available documentation for this part.

Obsolete

BRIDGELUX

LED COB LED ARRAY WHT SQ 4100K

Technical Specifications

Parameters and characteristics for this part

Specification	BXRA-N0800-00000

CCT (K)	4100 K
Color	Neutral, White
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	2 A
Current - Test	1.2 A
Height [z]	3.5 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	56 lm/W
Luminous Flux @ Current/Temperature	880 lm
Size / Dimension [x]	22.8 mm
Size / Dimension [y]	25.8 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	13 V

Part	Viewing Angle	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Height [z]	Luminous Flux @ Current/Temperature	CCT (K)	Color	Type	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Configuration	Lens Type
BRIDGELUX BXRA-N0800-00000	120 °	2 A	13 V	3.5 mm	880 lm	4100 K	Neutral White	Chip On Board (COB)	80	56 lm/W	1.2 A	25.8 mm	22.8 mm	Square	Domed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) LED Array White, Neutral Square
