Q-040040005108i

Active

Amphenol Custom Cable

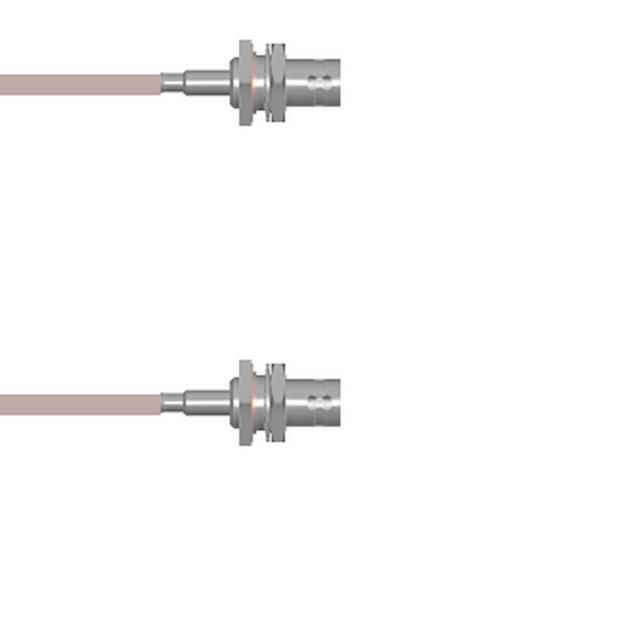

CBL ASSY BNC JACK TO JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-040040005108i

Active

Amphenol Custom Cable

CBL ASSY BNC JACK TO JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-040040005108i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	BNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to BNC

Q-040040 Series

Part	Style	Frequency - Max [Max]	2nd Connector Mounting Type	1st Connector	Overall Impedance	2nd Contact Gender	1st Contact Gender	Length [x]	Length [x]	1st Connector Mounting Type	2nd Connector	Color	Features	1st Connector Mounting Feature	Cable Type	2nd Connector Mounting Feature	Length	Length	Length
Amphenol Custom Cable Q-040040005.25M	BNC to BNC	4 GHz	Panel Mount	BNC Jack	50 Ohms	Female	Female	9.843 "	250 mm	Panel Mount	BNC Jack	Copper	Shielded	Bulkhead - Front Side Nut	RG-316	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-040040005012i	BNC to BNC	4 GHz	Panel Mount	BNC Jack	50 Ohms	Female	Female			Panel Mount	BNC Jack	Copper	Shielded	Bulkhead - Front Side Nut	RG-316	Bulkhead - Front Side Nut	12 "	304.8 mm
Amphenol Custom Cable Q-0400400052.5M	BNC to BNC	4 GHz	Panel Mount	BNC Jack	50 Ohms	Female	Female			Panel Mount	BNC Jack	Copper	Shielded	Bulkhead - Front Side Nut	RG-316	Bulkhead - Front Side Nut	98.4 in	2.5 m	8.2 '
Amphenol Custom Cable Q-040040005108i	BNC to BNC	4 GHz	Panel Mount	BNC Jack	50 Ohms	Female	Female			Panel Mount	BNC Jack	Copper	Shielded	Bulkhead - Front Side Nut	RG-316	Bulkhead - Front Side Nut	108 in	2.7 m	9 ft
Amphenol Custom Cable Q-0400400031.5M	BNC to BNC	4 GHz	Panel Mount	BNC Jack	50 Ohms	Female	Female			Panel Mount	BNC Jack	Black	Shielded	Bulkhead - Front Side Nut	RG-174	Bulkhead - Front Side Nut	59.1 in	1.5 m	4.9 ft
Amphenol Custom Cable Q-040040005036i	BNC to BNC	4 GHz	Panel Mount	BNC Jack	50 Ohms	Female	Female			Panel Mount	BNC Jack	Copper	Shielded	Bulkhead - Front Side Nut	RG-316	Bulkhead - Front Side Nut	36 in	91.44 cm
Amphenol Custom Cable Q-0400400051.5M	BNC to BNC	4 GHz	Panel Mount	BNC Jack	50 Ohms	Female	Female			Panel Mount	BNC Jack	Copper	Shielded	Bulkhead - Front Side Nut	RG-316	Bulkhead - Front Side Nut	59.1 in	1.5 m	4.9 ft
Amphenol Custom Cable Q-040040005048i	BNC to BNC	4 GHz	Panel Mount	BNC Jack	50 Ohms	Female	Female			Panel Mount	BNC Jack	Copper	Shielded	Bulkhead - Front Side Nut	RG-316	Bulkhead - Front Side Nut	48 in	1200 mm	4 ft
Amphenol Custom Cable Q-040040003084i	BNC to BNC	4 GHz	Panel Mount	BNC Jack	50 Ohms	Female	Female			Panel Mount	BNC Jack	Black	Shielded	Bulkhead - Front Side Nut	RG-174	Bulkhead - Front Side Nut	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-040040003.75M	BNC to BNC	4 GHz	Panel Mount	BNC Jack	50 Ohms	Female	Female			Panel Mount	BNC Jack	Black	Shielded	Bulkhead - Front Side Nut	RG-174	Bulkhead - Front Side Nut	29.53 "	750 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 101.40
		25	$ 99.40
		50	$ 97.39
		100	$ 95.39
		250	$ 93.39

Description

General part information

Q-040040 Series

Cable Assembly Coaxial BNC to BNC RG-316 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
