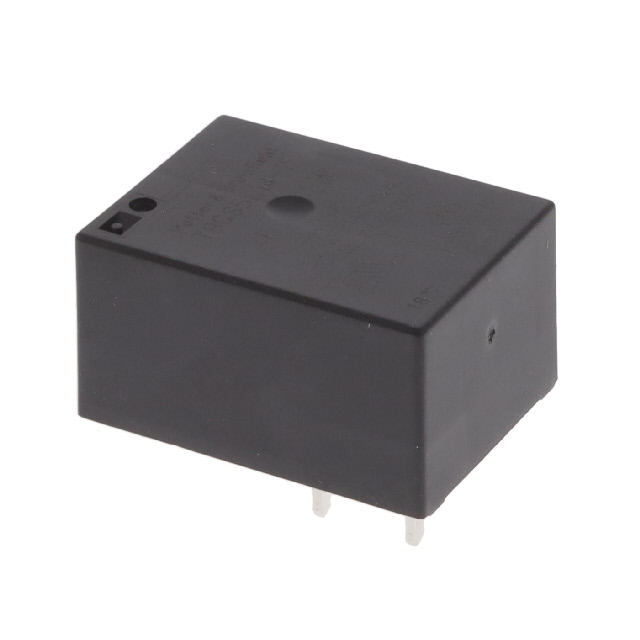

T9GS5L14-15

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 20A 15V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T9GS5L14-15

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 20A 15V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T9GS5L14-15

Approval Agency	CQC, VDE, cURus
Coil Current	60 mA
Coil Insulation	Class F
Coil Resistance	249 Ohms
Coil Type	Non Latching
Coil Voltage	15 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	20 A
Load - Max Switching [Max]	9600 VA
Mounting Type	Through Hole
Must Operate Voltage	11.25 VDC
Must Release Voltage	1.5 VDC
Operate Time	15 ms
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	22 ms
Seal Rating	Sealed - Fully
Switching Voltage	480 VAC
Termination Style	PC Pin

T9GS5 Series

Part	Operate Time	Termination Style	Relay Type	Load - Max Switching [Max]	Coil Type	Mounting Type	Contact Form	Coil Resistance	Must Release Voltage	Approval Agency	Coil Insulation	Contact Material	Contact Rating (Current)	Coil Voltage	Coil Current	Release Time	Must Operate Voltage	Seal Rating	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style
TE Connectivity Potter & Brumfield Relays T9GS5L14-9	15 ms	PC Pin	General Purpose	9600 VA	Non Latching	Through Hole	SPDT (1 Form C)	90 Ohms	0.9 VDC	CQC cURus VDE	Class F	Silver Tin Oxide (AgSnO)	20 A	9 VDC	100 mA	22 ms	6.75 VDC	Sealed - Fully	480 VAC	-40 °C	105 ░C
TE Connectivity Potter & Brumfield Relays T9GS5L24-5	15 ms	PC Pin Quick Connect	General Purpose	9600 VA	Non Latching	Through Hole	SPDT (1 Form C)	28 Ohms	0.5 VDC	CQC cURus VDE	Class F	Silver Tin Oxide (AgSnO)	20 A	5 VDC	180 mA	22 ms	3.75 VDC	Sealed - Fully	480 VAC	-40 °C	105 ░C	0.25 in
TE Connectivity Potter & Brumfield Relays T9GS5L14-15	15 ms	PC Pin	General Purpose	9600 VA	Non Latching	Through Hole	SPDT (1 Form C)	249 Ohms	1.5 VDC	CQC cURus VDE	Class F	Silver Tin Oxide (AgSnO)	20 A	15 VDC	60 mA	22 ms	11.25 VDC	Sealed - Fully	480 VAC	-40 °C	105 ░C
TE Connectivity Potter & Brumfield Relays T9GS5L24-15	15 ms	PC Pin Quick Connect	General Purpose	9600 VA	Non Latching	Through Hole	SPDT (1 Form C)	249 Ohms	1.5 VDC	CQC cURus VDE	Class F	Silver Tin Oxide (AgSnO)	20 A	15 VDC	60 mA	22 ms	11.25 VDC	Sealed - Fully	480 VAC	-40 °C	105 ░C	0.25 in
TE Connectivity Potter & Brumfield Relays T9GS5L24-18	15 ms	PC Pin Quick Connect	General Purpose	9600 VA	Non Latching	Through Hole	SPDT (1 Form C)	360 Ohms	1.8 VDC	CQC cURus VDE	Class F	Silver Tin Oxide (AgSnO)	20 A	18 VDC	50 mA	22 ms	13.5 VDC	Sealed - Fully	480 VAC	-40 °C	105 ░C	0.25 in
TE Connectivity Potter & Brumfield Relays T9GS5L14-48	15 ms	PC Pin	General Purpose	9600 VA	Non Latching	Through Hole	SPDT (1 Form C)	2500 Ohms	4.8 VDC	CQC cURus VDE	Class F	Silver Tin Oxide (AgSnO)	20 A	48 VDC	18.8 mA	22 ms	36 VDC	Sealed - Fully	480 VAC	-40 °C	105 ░C
TE Connectivity Potter & Brumfield Relays T9GS5L14-18	15 ms	PC Pin	General Purpose	9600 VA	Non Latching	Through Hole	SPDT (1 Form C)	360 Ohms	1.8 VDC	CQC cURus VDE	Class F	Silver Tin Oxide (AgSnO)	20 A	18 VDC	50 mA	22 ms	13.5 VDC	Sealed - Fully	480 VAC	-40 °C	105 ░C
TE Connectivity Potter & Brumfield Relays T9GS5L14-12	15 ms	PC Pin	General Purpose	9600 VA	Non Latching	Through Hole	SPDT (1 Form C)	160 Ohms	1.2 VDC	CQC cURus VDE	Class F	Silver Tin Oxide (AgSnO)	20 A	12 VDC	75 mA	22 ms	9 VDC	Sealed - Fully	480 VAC	-40 °C	105 ░C
TE Connectivity Potter & Brumfield Relays T9GS5L14-110	15 ms	PC Pin	General Purpose	9600 VA	Non Latching	Through Hole	SPDT (1 Form C)	13.4 kOhms	11 VDC	CQC cURus VDE	Class F	Silver Tin Oxide (AgSnO)	20 A	110 VDC	8.2 mA	22 ms	82.5 VDC	Sealed - Fully	480 VAC	-40 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.23
		10	$ 3.69
		30	$ 3.46
		50	$ 3.36
		100	$ 3.23
		250	$ 3.06
		500	$ 2.94
		1000	$ 2.82

Description

General part information

T9GS5 Series

General Purpose Relay SPDT (1 Form C) 15VDC Coil Through Hole
