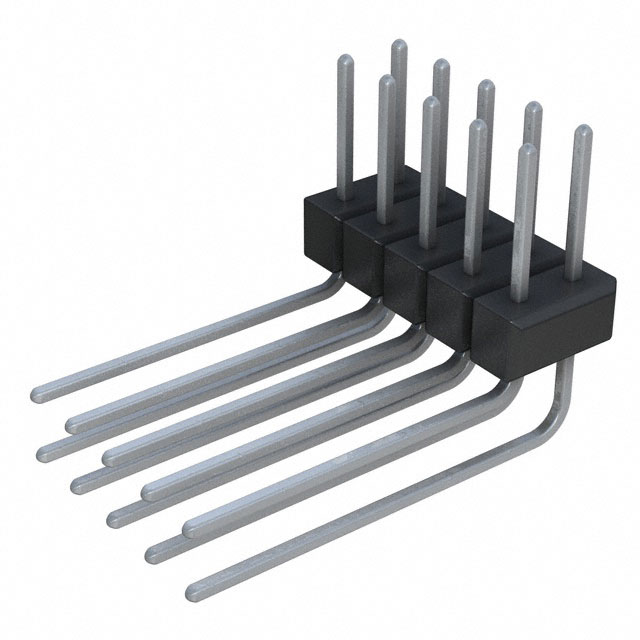

PTC05DBEN

Obsolete

Sullins Connector Solutions

CONN HEADER R/A 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTC05DBEN

Obsolete

Sullins Connector Solutions

CONN HEADER R/A 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTC05DBEN

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	13.21 mm
Contact Length - Post	0.52 "
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PTC05 Series

Part	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Shrouding	Contact Length - Mating [x]	Contact Length - Mating [x]	Mounting Type	Contact Shape	Contact Finish - Post	Insulation Material	Number of Rows	Number of Positions Loaded	Insulation Height	Insulation Height	Termination	Contact Material	Connector Type	Fastening Type	Style	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions PTC05SGBN	UL94 V-0	2.54 µm	100 µin	3 A	Unshrouded	0.318 "	8.08 mm	Through Hole Right Angle	Square	Tin	Polyester Thermoplastic	1	All	3.56 mm	0.14 in	Solder	Copper Alloy	Header	Push-Pull	Board to Board Cable	Black	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin	0.22 in	5.58 mm
Sullins Connector Solutions PTC05SBAN	UL94 V-0	2.54 µm	100 µin	3 A	Unshrouded	0.23 in		Through Hole Right Angle	Square	Tin	Polyester Thermoplastic	1	All	3.56 mm	0.14 in	Solder	Copper Alloy	Header	Push-Pull	Board to Board Cable	Black	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin			5.84 mm	0.12 in	3.05 mm
Sullins Connector Solutions PTC05SFAN	UL94 V-0	2.54 µm	100 µin	3 A	Unshrouded	0.318 "	8.08 mm	Through Hole	Square	Tin	Polyester Thermoplastic	1	All	2.54 mm	0.1 in	Solder	Copper Alloy	Header	Push-Pull	Board to Board Cable	Black	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin				0.12 in	3.05 mm	0.538 "	13.67 mm
Sullins Connector Solutions PTC05DAFN	UL94 V-0	2.54 µm	100 µin	3 A	Unshrouded	0.23 in		Through Hole	Square	Tin	Polyester Thermoplastic	2	All	2.54 mm	0.1 in	Solder	Copper Alloy	Header	Push-Pull	Board to Board Cable	Black	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin	0.62 in	15.75 mm	5.84 mm			0.95 in	24.13 mm	10	2.54 mm	0.1 in
Sullins Connector Solutions PTC05SAFN	UL94 V-0	2.54 µm	100 µin	3 A	Unshrouded	0.23 in		Through Hole	Square	Tin	Polyester Thermoplastic	1	All	2.54 mm	0.1 in	Solder	Copper Alloy	Header	Push-Pull	Board to Board Cable	Black	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin	0.62 in	15.75 mm	5.84 mm			0.95 in	24.13 mm
Sullins Connector Solutions PTC05DBEN	UL94 V-0	2.54 µm	100 µin	3 A	Unshrouded	0.23 in		Through Hole Right Angle	Square	Tin	Polyester Thermoplastic	2	All	6.1 mm	0.24 in	Solder	Copper Alloy	Header	Push-Pull	Board to Board Cable	Black	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin	0.52 "	13.21 mm	5.84 mm					10	2.54 mm	0.1 in
Sullins Connector Solutions PTC05DBAN	UL94 V-0	2.54 µm	100 µin	3 A	Unshrouded	0.23 in		Through Hole Right Angle	Square	Tin	Polyester Thermoplastic	2	All	6.1 mm	0.24 in	Solder	Copper Alloy	Header	Push-Pull	Board to Board Cable	Black	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin			5.84 mm	0.12 in	3.05 mm			10	2.54 mm	0.1 in
Sullins Connector Solutions PTC05SABN	UL94 V-0	2.54 µm	100 µin	3 A	Unshrouded	0.23 in		Through Hole	Square	Tin	Polyester Thermoplastic	1	All	2.54 mm	0.1 in	Solder	Copper Alloy	Header	Push-Pull	Board to Board Cable	Black	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin	0.23 in	5.84 mm	5.84 mm			0.56 in	14.22 mm
Sullins Connector Solutions PTC05DAHN	UL94 V-0	2.54 µm	100 µin	3 A	Unshrouded	0.23 in		Through Hole	Square	Tin	Polyester Thermoplastic	2	All	2.54 mm	0.1 in	Solder	Copper Alloy	Header	Push-Pull	Board to Board Cable	Black	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin			5.84 mm	0.82 in	20.83 mm	1.15 in	29.21 mm	10	2.54 mm	0.1 in
Sullins Connector Solutions PTC05DGBN	UL94 V-0	2.54 µm	100 µin	3 A	Unshrouded	0.318 "	8.08 mm	Through Hole Right Angle	Square	Tin	Polyester Thermoplastic	2	All	6.1 mm	0.24 in	Solder	Copper Alloy	Header	Push-Pull	Board to Board Cable	Black	0.1 in	2.54 mm	Male Pin	2.54 çm	100 çin	0.22 in	5.58 mm						10	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PTC05 Series

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
