W11M07-P14MCC0-6560

Active

ODU

ODU MEDI-SNAP RT.ANGLE PLUG, STY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

W11M07-P14MCC0-6560

Active

ODU

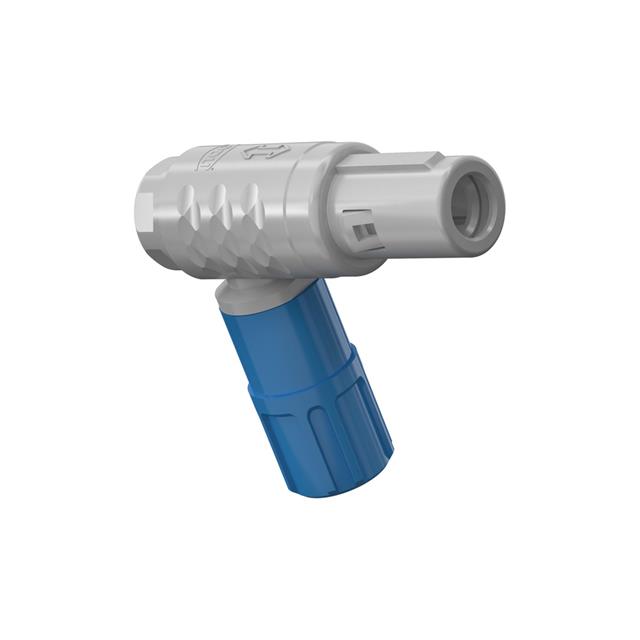

ODU MEDI-SNAP RT.ANGLE PLUG, STY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W11M07-P14MCC0-6560

Applications	Testing Equipment, Medical, Industrial, Measurement
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening [custom]	0.209 in, 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm
Color	Gray, Blue
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	14
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	0
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded
Voltage Rating	25 V

W11M07-P Series

Part	Current Rating (Amps)	Connector Type	Shell Size - Insert	Backshell Material, Plating	Shielding	Ingress Protection	Mounting Type	Shell Material	Contact Material	Applications	Insert Material	Color	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Fastening Type	Contact Finish - Mating	Voltage Rating	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Features	Termination	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
ODU W11M07-P08MFG0-6570	7.5 A	Male Pins Plug	1	Polysulfone (PSU)	Unshielded	IP50	Free Hanging (In-Line) Right Angle	Polysulfone (PSU)	Brass	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Gray	UL94 V-0	-50 °C	120 °C	Plastic	Push-Pull	Gold	10 V	0.209 in 0.256 in	5.3 mm 6.5 mm	8	Backshell
ODU W11M07-P08PFG0-5270	7.5 A	Male Pins Plug	1	Polysulfone (PSU)	Unshielded	IP50	Free Hanging (In-Line) Right Angle	Polysulfone (PSU)	Brass	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Gray	UL94 V-0	-50 °C	120 °C	Plastic	Push-Pull	Gold	10 V			8	Backshell	Crimp	0.157 in	0.205 in	4 mm	5.2 mm
ODU W11M07-P14MCC0-6560	4 A	Male Pins Plug	1	Polysulfone (PSU)	Unshielded	IP50	Free Hanging (In-Line) Right Angle	Polysulfone (PSU)	Brass	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Blue Gray	UL94 V-0	-50 °C	120 °C	Plastic	Push-Pull	Gold	25 V	0.209 in 0.256 in	5.3 mm 6.5 mm	14	Backshell
ODU W11M07-P09MCC0-5260	4 A	Male Pins Plug	1	Polysulfone (PSU)	Unshielded	IP50	Free Hanging (In-Line) Right Angle	Polysulfone (PSU)	Brass	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Blue Gray	UL94 V-0	-50 °C	120 °C	Plastic	Push-Pull	Gold	33 V			9	Backshell		0.157 in	0.205 in	4 mm	5.2 mm
ODU W11M07-P05MJG0-5270	7.5 A	Male Pins Plug	1	Polysulfone (PSU)	Unshielded	IP50	Free Hanging (In-Line) Right Angle	Polysulfone (PSU)	Brass	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Gray	UL94 V-0	-50 °C	120 °C	Plastic	Push-Pull	Gold	35 V				Backshell		0.157 in	0.205 in	4 mm	5.2 mm
ODU W11M07-P08MFG0-5260	7.5 A	Male Pins Plug	1	Polysulfone (PSU)	Unshielded	IP50	Free Hanging (In-Line) Right Angle	Polysulfone (PSU)	Brass	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Blue Gray	UL94 V-0	-50 °C	120 °C	Plastic	Push-Pull	Gold	10 V			8	Backshell		0.157 in	0.205 in	4 mm	5.2 mm
ODU W11M07-P04MJG0-5230	7.5 A	Male Pins Plug	1	Polysulfone (PSU)	Unshielded	IP50	Free Hanging (In-Line) Right Angle	Polysulfone (PSU)	Brass	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Gray White	UL94 V-0	-50 °C	120 °C	Plastic	Push-Pull	Gold	48 VDC			4	Backshell		0.157 in	0.205 in	4 mm	5.2 mm
ODU W11M07-P06MFG0-3970	7.5 A	Male Pins Plug	1	Polysulfone (PSU)	Unshielded	IP50	Free Hanging (In-Line) Right Angle	Polysulfone (PSU)	Brass	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Gray	UL94 V-0	-50 °C	120 °C	Plastic	Push-Pull	Gold	33 V			6	Backshell						2.7 mm	0.154 in	3.9 mm	0.106 in
ODU W11M07-P08MFG0-5270	7.5 A	Male Pins Plug	1	Polysulfone (PSU)	Unshielded	IP50	Free Hanging (In-Line) Right Angle	Polysulfone (PSU)	Brass	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Gray	UL94 V-0	-50 °C	120 °C	Plastic	Push-Pull	Gold	10 V			8	Backshell		0.157 in	0.205 in	4 mm	5.2 mm
ODU W11M07-P05MJG0-6570	7.5 A	Male Pins Plug	1	Polysulfone (PSU)	Unshielded	IP50	Free Hanging (In-Line) Right Angle	Polysulfone (PSU)	Brass	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Gray	UL94 V-0	-50 °C	120 °C	Plastic	Push-Pull	Gold	35 V	0.209 in 0.256 in	5.3 mm 6.5 mm		Backshell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.21

Description

General part information

W11M07-P Series

14 Position Circular Connector Plug, Male Pins Solder Cup
