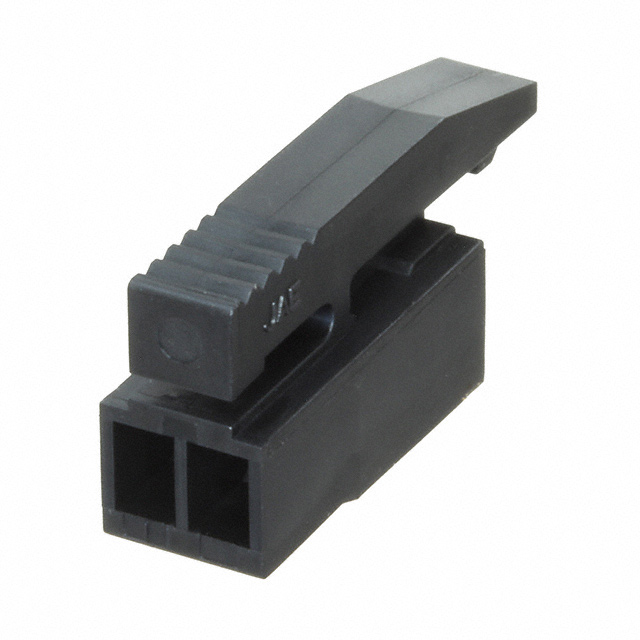

IL-L2S-S3L-B(N)
NRNDJAE Electronics
CONN RCPT HSG 2POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IL-L2S-S3L-B(N)
NRNDJAE Electronics
CONN RCPT HSG 2POS 2.50MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IL-L2S-S3L-B(N) |
|---|---|
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.84 | |
| 10 | $ 1.60 | |||
| 100 | $ 1.43 | |||
| 500 | $ 1.20 | |||
Description
General part information
IL-L2S-S Series
2 Rectangular Connectors - Housings Receptacle 0.098" (2.50mm)
