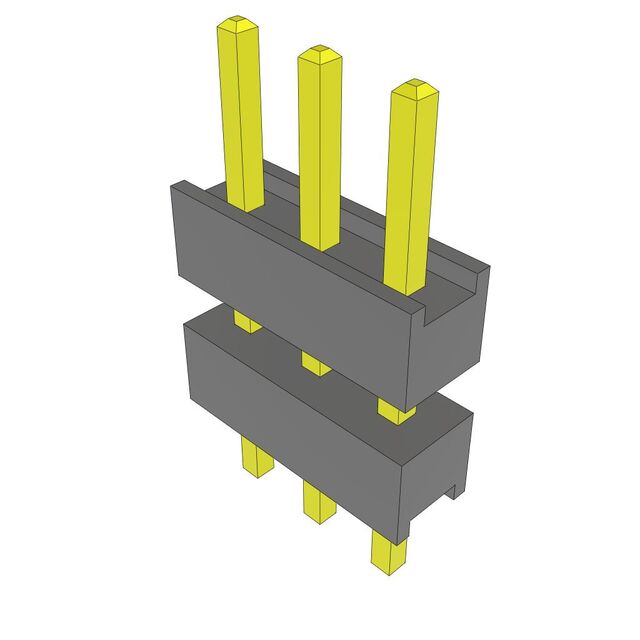

ZW-03-08-T-S-334-098

Active

Samtec Inc.

CONN BRD STACK .100" 3POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZW-03-08-T-S-334-098

Active

Samtec Inc.

CONN BRD STACK .100" 3POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZW-03-08-T-S-334-098

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin	0.53 in
Length - Overall Pin	13.462 mm
Length - Post (Mating) [x]	2.489 mm
Length - Post (Mating) [x]	0.098 in
Length - Stack Height [x]	8.484 mm
Length - Stack Height [x]	0.334 in
Length - Tail [x]	0.098 in
Length - Tail [x]	2.489 mm
Mounting Type	Through Hole
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

ZW-03-08 Series

Part	Mounting Type	Contact Finish - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Overall Pin	Length - Overall Pin	Pitch [x]	Pitch [x]	Length - Stack Height [z]	Length - Stack Height [z]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Termination	Color	Length - Tail [x]	Length - Tail [x]	Number of Rows	Length - Tail [custom]	Length - Tail [custom]	Length - Stack Height [x]	Length - Stack Height [x]	Row Spacing [x]	Row Spacing	Number of Positions	Length - Tail	Length - Tail [custom]	Length - Tail	Length - Stack Height [custom]	Length - Stack Height [custom]
Samtec Inc. ZW-03-08-G-S-233-205	Through Hole	Gold	0.25 Ám	10 Áin	0.53 in	13.462 mm	2.54 mm	0.1 in	5.918 mm	0.233 in	0.092 in	2.337 mm	Solder	Black	5.207 mm	0.205 in	1
Samtec Inc. ZW-03-08-T-S-394-068	Through Hole	Tin			0.53 in	13.462 mm	2.54 mm	0.1 in			0.068 in	1.727 mm	Solder	Black			1	0.068 in	1.727 mm	0.394 in	10.008 mm
Samtec Inc. ZW-03-08-G-D-275-085	Through Hole	Gold	0.25 Ám	10 Áin	0.53 in	13.462 mm	2.54 mm	0.1 in			0.17 in	4.318 mm	Solder	Black			2			0.275 in	6.985 mm	0.1 in	2.54 mm	6	2.159 mm	0.085 in
Samtec Inc. ZW-03-08-T-D-375-075	Through Hole	Tin			0.53 in	13.462 mm	2.54 mm	0.1 in					Solder	Black			2			0.375 in	9.525 mm	0.1 in	2.54 mm	6	1.905 mm		0.075 in
Samtec Inc. ZW-03-08-T-S-334-098	Through Hole	Tin			0.53 in	13.462 mm	2.54 mm	0.1 in			0.098 in	2.489 mm	Solder	Black	2.489 mm	0.098 in	1			0.334 in	8.484 mm
Samtec Inc. ZW-03-08-T-D-236-170	Through Hole	Tin			0.53 in	13.462 mm	2.54 mm	0.1 in			0.124 in	3.15 mm	Solder	Black			2			0.236 in	5.994 mm	0.1 in	2.54 mm	6	4.318 mm		0.17 in
Samtec Inc. ZW-03-08-G-S-200-100	Through Hole	Gold	0.25 Ám	10 Áin	0.53 in	13.462 mm	2.54 mm	0.1 in			0.23 in	5.842 mm	Solder	Black	2.54 mm	0.1 "	1
Samtec Inc. ZW-03-08-T-S-355-088	Through Hole	Tin			0.53 in	13.462 mm	2.54 mm	0.1 in			0.087 in	2.21 mm	Solder	Black			1	0.088 "	2.235 mm	0.355 in	9.017 mm
Samtec Inc. ZW-03-08-L-D-200-100	Through Hole	Gold	0.25 Ám	10 Áin	0.53 in	13.462 mm	2.54 mm	0.1 in			0.23 in	5.842 mm	Solder	Black	2.54 mm	0.1 "	2					0.1 in	2.54 mm	6
Samtec Inc. ZW-03-08-T-S-203-140	Through Hole	Tin			0.53 in	13.462 mm	2.54 mm	0.1 in			0.187 in	4.75 mm	Solder	Black			1	0.14 in							3.556 mm			0.203 in	5.156 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.30

Description

General part information

ZW-03-08 Series

3 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
