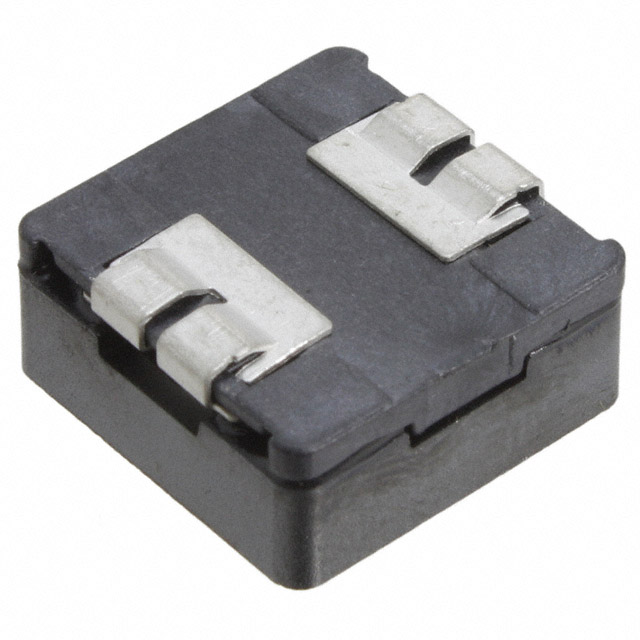

3631B470LL
ActiveTE Connectivity Passive Product
FIXED IND 47UH 1.6A 130 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3631B470LL
ActiveTE Connectivity Passive Product
FIXED IND 47UH 1.6A 130 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3631B470LL |
|---|---|
| Current Rating (Amps) | 1.6 A |
| DC Resistance (DCR) [Max] | 130 mOhm |
| Height - Seated (Max) [Max] [z] | 0.256 in |
| Height - Seated (Max) [Max] [z] | 6.5 mm |
| Inductance | 47 µH |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Tolerance | 15 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.62 | |
| 10 | $ 1.37 | |||
| 25 | $ 1.25 | |||
| 50 | $ 1.17 | |||
| 100 | $ 0.97 | |||
| 250 | $ 0.90 | |||
| Digi-Reel® | 1 | $ 1.62 | ||
| 10 | $ 1.37 | |||
| 25 | $ 1.25 | |||
| 50 | $ 1.17 | |||
| 100 | $ 0.97 | |||
| 250 | $ 0.90 | |||
| Tape & Reel (TR) | 600 | $ 0.85 | ||
| 1200 | $ 0.77 | |||
| 3000 | $ 0.75 | |||
| 6000 | $ 0.72 | |||
Description
General part information
3631 Series
47 µH Shielded Inductor 1.6 A 130mOhm Max Nonstandard
