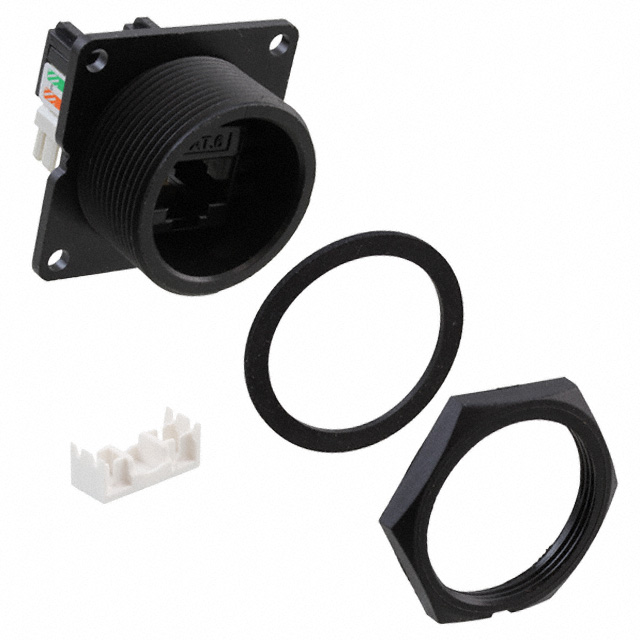

DCP-RJ6T-RD

Active

Conxall/Switchcraft

CONN MOD JACK 8P8C R/A UNSHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DCP-RJ6T-RD

Active

Conxall/Switchcraft

CONN MOD JACK 8P8C R/A UNSHLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCP-RJ6T-RD

Connector Type	Jack
Contact Finish	Gold
Contact Material	Copper Alloy
Features	Circular Threaded Coupling
Housing Material	Thermoplastic
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
LED Color	Does Not Contain LED
Mounting Type	Panel Mount, Flange
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Orientation	90 °
Ratings	Cat6
Shielding	Unshielded
Tab Direction	Down
Termination	IDC

DCP-RJ6 Series

Part	Orientation	Ingress Protection	Shielding	Termination	Number of Rows	Ratings	Connector Type	Features	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Number of Ports	Tab Direction	Mounting Type	Contact Material	Number of Positions/Contacts	LED Color	Shield Material	Convert From (Adapter End)	Type	Convert To (Adapter End)	Shell Material, Finish	Orientation	Length	Length	Color	Voltage Rating	Cable Type
Conxall/Switchcraft DCP-RJ6T-SD	Straight	IP67/IP68 - Dust Tight Waterproof	Unshielded	IDC	1	Cat6	Jack	Circular Threaded Coupling	Thermoplastic	-10 °C	60 °C	Gold	1	User Selectable	Flange Panel Mount	Copper Alloy	8p8c (RJ45 Ethernet)	Does Not Contain LED
Conxall/Switchcraft DCP-RJ6ST-F		IP67/IP68 - Dust Tight Waterproof	Shielded			Cat6		Circular Threaded Coupling	Thermoplastic	-10 °C	60 °C	Gold			Flange Panel Mount	Copper Alloy			Copper Alloy	Jack 8p8c (RJ45)	Coupler	8p8c (RJ45) Jack	Thermoplastic
Conxall/Switchcraft DCP-RJ6T-RD		IP67/IP68 - Dust Tight Waterproof	Unshielded	IDC	1	Cat6	Jack	Circular Threaded Coupling	Thermoplastic	-10 °C	60 °C	Gold	1	Down	Flange Panel Mount	Copper Alloy	8p8c (RJ45 Ethernet)	Does Not Contain LED						90 °
Conxall/Switchcraft DCP-RJ6SB-RD		IP67/IP68 - Dust Tight Waterproof	Shielded	IDC	1	Cat6	Jack	Quick Connect	Thermoplastic	-10 °C	60 °C	Gold	1	Down	Flange Panel Mount	Copper Alloy	8p8c (RJ45 Ethernet)	Does Not Contain LED						90 °
Conxall/Switchcraft DCP-RJ6SB-SD	Straight	IP67/IP68 - Dust Tight Waterproof	Shielded	IDC	1	Cat6	Jack	Quick Connect	Thermoplastic	-10 °C	60 °C	Gold	1	User Selectable	Flange Panel Mount	Copper Alloy	8p8c (RJ45 Ethernet)	Does Not Contain LED
Conxall/Switchcraft DCP-RJ6ST-RD		IP67/IP68 - Dust Tight Waterproof	Shielded	IDC	1	Cat6	Jack	Circular Threaded Coupling	Thermoplastic	-10 °C	60 °C	Gold	1	Down	Flange Panel Mount	Copper Alloy	8p8c (RJ45 Ethernet)	Does Not Contain LED						90 °
Conxall/Switchcraft DCC-RJ6ST-310		IP67 - Dust Tight Waterproof	Shielded			Cat6	Plug	Circular Threaded Coupling	Thermoplastic			Gold				Copper Alloy	8p8c (RJ45 Ethernet)		Copper Alloy						2.035 "	51.7 mm	Translucent - Clear	1000 VDC	Round Cable Solid Stranded Wires
Conxall/Switchcraft DCP-RJ6B-RD		IP67/IP68 - Dust Tight Waterproof	Unshielded	IDC	1	Cat6	Jack	Quick Connect	Thermoplastic	-10 °C	60 °C	Gold	1	Down	Flange Panel Mount	Copper Alloy	8p8c (RJ45 Ethernet)	Does Not Contain LED						90 °
Conxall/Switchcraft DCP-RJ6B-SD	Straight	IP67/IP68 - Dust Tight Waterproof	Unshielded	IDC	1	Cat6	Jack	Quick Connect	Thermoplastic	-10 °C	60 °C	Gold	1	User Selectable	Flange Panel Mount	Copper Alloy	8p8c (RJ45 Ethernet)	Does Not Contain LED
Conxall/Switchcraft DCP-RJ6ST-SD	Straight	IP67/IP68 - Dust Tight Waterproof	Shielded	IDC	1	Cat6	Jack	Circular Threaded Coupling	Thermoplastic	-10 °C	60 °C	Gold	1	User Selectable	Flange Panel Mount	Copper Alloy	8p8c (RJ45 Ethernet)	Does Not Contain LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 28.05

Description

General part information

DCP-RJ6 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded Cat6
