RL0816T4F-F-R005-FNH

Obsolete

Delta Electronics/Cyntec

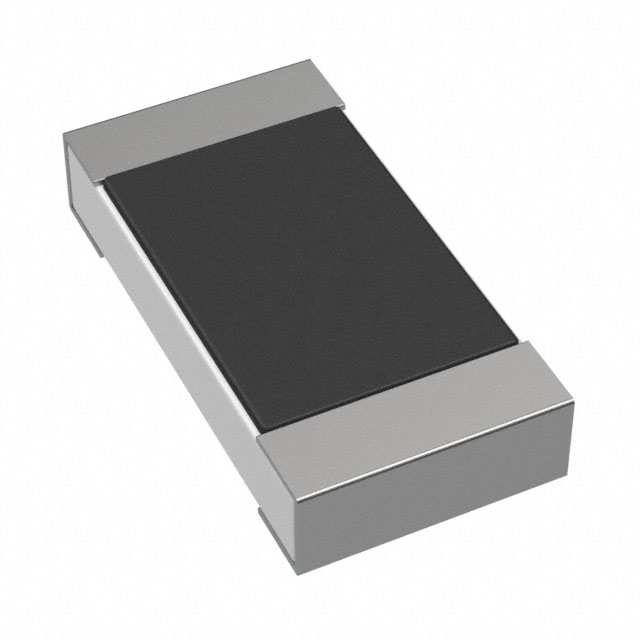

RES 0.005 OHM 1% 1/3W WIDE 0603

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RL0816T4F-F-R005-FNH

Obsolete

Delta Electronics/Cyntec

RES 0.005 OHM 1% 1/3W WIDE 0603

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RL0816T4F-F-R005-FNH

Composition	Metal Film
Features	Current Sense
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Number of Terminations	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [custom]	Wide 0603 (1608 Metric), 0306
Power (Watts)	0.333 W
Power (Watts)	0.3333333333333333 W
Resistance	5 mOhms
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Size / Dimension [y]	0.031 in
Supplier Device Package	0816
Temperature Coefficient	150 ppm/°C
Tolerance	1 %

RL0816T4F Series

Part	Features	Tolerance	Composition	Power (Watts)	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Terminations	Supplier Device Package	Resistance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case [custom]	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Delta Electronics/Cyntec RL0816T4F-F-R050-FNH	Current Sense	1 %	Metal Film	0.333 W	0.3333333333333333 W	-55 °C	125 °C	4	0816	0.05 Ohms	0.7 mm	0.028 in	0306 Wide 0603 (1608 Metric)	150 ppm/°C	0.8 mm	0.063 in	1.6 mm	0.031 in
Delta Electronics/Cyntec RL0816T4F-4-R100-FNH	Current Sense	1 %	Metal Film	0.5 W	0.5 W	-55 °C	125 °C	4	0816	0.1 Ohms	0.7 mm	0.028 in	0306 Wide 0603 (1608 Metric)	150 ppm/°C	0.8 mm	0.063 in	1.6 mm	0.031 in
Delta Electronics/Cyntec RL0816T4F-F-R005-FNH	Current Sense	1 %	Metal Film	0.333 W	0.3333333333333333 W	-55 °C	125 °C	4	0816	5 mOhms	0.7 mm	0.028 in	0306 Wide 0603 (1608 Metric)	150 ppm/°C	0.8 mm	0.063 in	1.6 mm	0.031 in
Delta Electronics/Cyntec RL0816T4F-F-R015-FNH	Current Sense	1 %	Metal Film	0.333 W	0.3333333333333333 W	-55 °C	125 °C	4	0816	15 mOhms	0.7 mm	0.028 in	0306 Wide 0603 (1608 Metric)	150 ppm/°C	0.8 mm	0.063 in	1.6 mm	0.031 in
Delta Electronics/Cyntec RL0816T4F-F-R025-FNH	Current Sense	1 %	Metal Film	0.333 W	0.3333333333333333 W	-55 °C	125 °C	4	0816	25 mOhms	0.7 mm	0.028 in	0306 Wide 0603 (1608 Metric)	150 ppm/°C	0.8 mm	0.063 in	1.6 mm	0.031 in
Delta Electronics/Cyntec RL0816T4F-F-R010-FNH	Current Sense	1 %	Metal Film	0.333 W	0.3333333333333333 W	-55 °C	125 °C	4	0816	10 mOhms	0.7 mm	0.028 in	0306 Wide 0603 (1608 Metric)	150 ppm/°C	0.8 mm	0.063 in	1.6 mm	0.031 in
Delta Electronics/Cyntec RL0816T4F-F-R020-FNH	Current Sense	1 %	Metal Film	0.333 W	0.3333333333333333 W	-55 °C	125 °C	4	0816	0.02 Ohms	0.7 mm	0.028 in	0306 Wide 0603 (1608 Metric)	150 ppm/°C	0.8 mm	0.063 in	1.6 mm	0.031 in
Delta Electronics/Cyntec RL0816T4F-4-R050-FNH	Current Sense	1 %	Metal Film	0.5 W	0.5 W	-55 °C	125 °C	4	0816	0.05 Ohms	0.7 mm	0.028 in	0306 Wide 0603 (1608 Metric)	150 ppm/°C	0.8 mm	0.063 in	1.6 mm	0.031 in
Delta Electronics/Cyntec RL0816T4F-4-R025-FNH	Current Sense	1 %	Metal Film	0.5 W	0.5 W	-55 °C	125 °C	4	0816	25 mOhms	0.7 mm	0.028 in	0306 Wide 0603 (1608 Metric)	150 ppm/°C	0.8 mm	0.063 in	1.6 mm	0.031 in
Delta Electronics/Cyntec RL0816T4F-4-R010-FNH	Current Sense	1 %	Metal Film	0.5 W	0.5 W	-55 °C	125 °C	4	0816	10 mOhms	0.7 mm	0.028 in	0306 Wide 0603 (1608 Metric)	150 ppm/°C	0.8 mm	0.063 in	1.6 mm	0.031 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RL0816T4F Series

5 mOhms ±1% 0.333W, 1/3W Chip Resistor Wide 0603 (1608 Metric), 0306 Current Sense Metal Film
