09340030501

Active

HARTING Technology Group

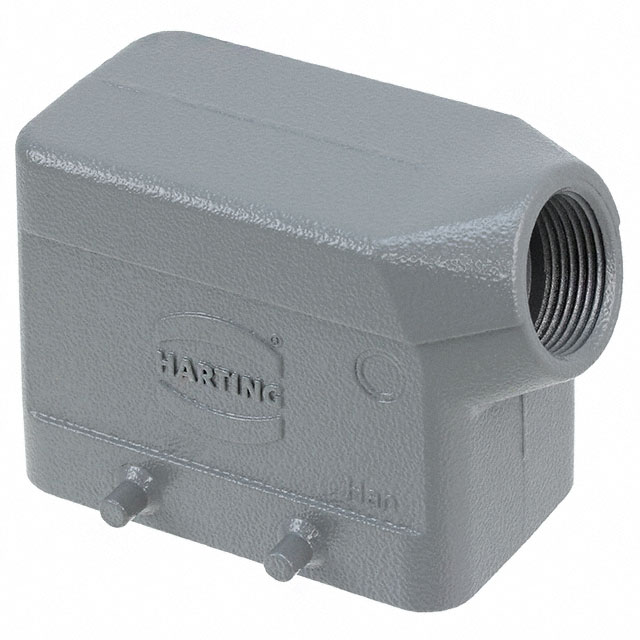

HAN HVE HOOD SIDE ENTRY LC 4 PEGS PG 16 ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN HVE HOOD SIDE ENTRY LC 4 PEGS PG 16 ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Lock Location	Thread Size	Connector Type	Features	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 09340030501	Side Entry	2.874 in	57 mm	2.244 "	73 mm	1.693 in	43 mm	Locking Clip (2) on Base Bottom	PG16	Hood
HARTING Technology Group 09340030701	Bottom Entry	2.858 "		1.866 "	72.6 mm	1.693 in		Locking Clip (2) on Hood Top	PG16	Hood - Coupling	Cable to Cable	43 mm	47.4 mm
HARTING Technology Group 09340030201	Side Entry	3.701 "		2.118 "	94 mm	2.047 "		Locking Clip (2) on Base Bottom	PG16	Base - Box Mount	Feed Through	52 mm	53.8 mm
HARTING Technology Group 09340030404	Top Entry	2.858 "	45 mm	1.772 in	72.6 mm	1.693 in	43 mm	Locking Clip (1) on Base Bottom	PG16	Hood
HARTING Technology Group 09340030703	Bottom Entry	2.858 "		1.866 "	72.6 mm	1.693 in		Locking Clip (1) on Hood Top	PG16	Hood - Coupling	Cable to Cable	43 mm	47.4 mm
HARTING Technology Group 09340030305	Bottom Entry	3.661 inches		1.138 "	93 mm	1.709 in		Locking Clip (1) on Base Bottom		Base - Panel Mount		43.4 mm	28.9 mm
HARTING Technology Group 09340030401	Top Entry	2.858 "	45 mm	1.772 in	72.6 mm	1.693 in	43 mm	Locking Clip (2) on Base Bottom		Hood

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry PG16
