AST0550202
ActiveMETZ CONNECT USA Inc.

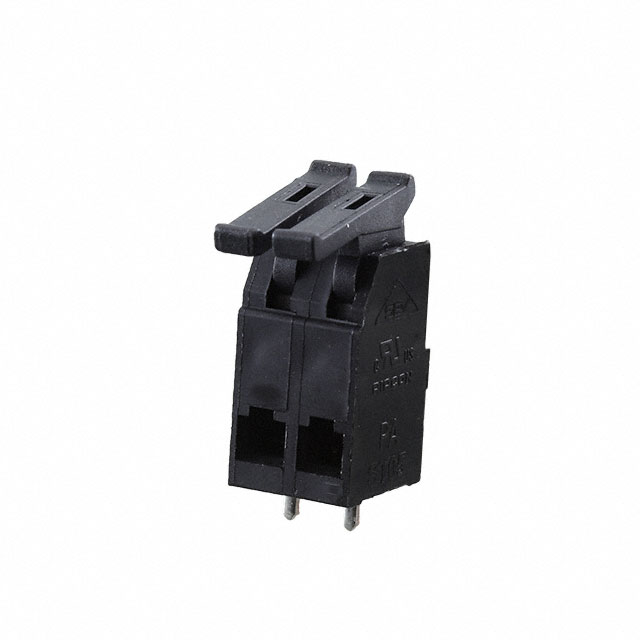

TERM BLK 2POS SIDE ENTRY 5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
AST0550202
ActiveMETZ CONNECT USA Inc.
TERM BLK 2POS SIDE ENTRY 5MM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AST0550202 |
|---|---|
| Clamp Material - Plating | Steel |
| Color | Black |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 12 A |
| Features | Lever Actuated |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 2 |
| Voltage | 300 V |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 12 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.04 | |
| 10 | $ 1.24 | |||
| 25 | $ 1.09 | |||
| 50 | $ 1.00 | |||
| 100 | $ 0.94 | |||
| 250 | $ 0.89 | |||
Description
General part information
AST055 Series
2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Documents
Technical documentation and resources
No documents available
