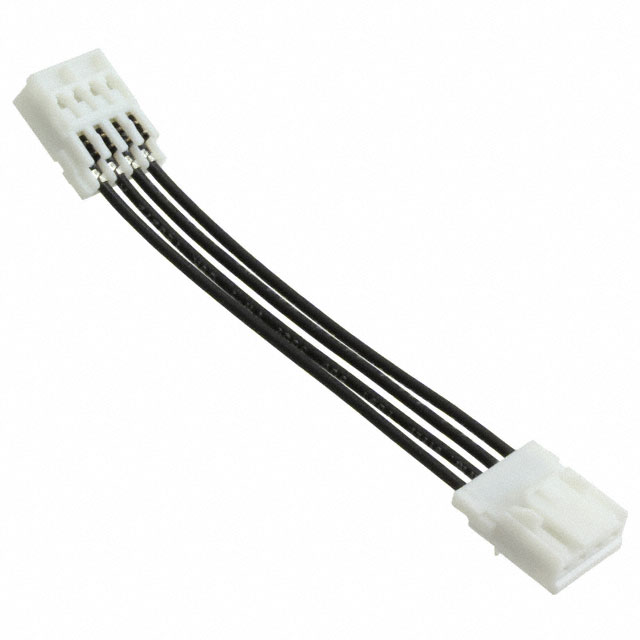

A04XAF04XAF22K51A

Active

JST Sales America Inc.

JUMPER 04XAF-2S - 04XAF-2S 2"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 04XAF-2S - 04XAF-2S 2"

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Pitch - Connector	Pitch - Connector	Number of Positions	Cable Termination	Contact Finish	Length [x]	Length [x]	Length [x]	Connector Type	Length	Length	Length	Length
JST Sales America Inc. A04XAF04XAF22K102B	1	2.5 mm	0.098 in	4	IDC	Tin	4 "	0.333 ft	101.6 mm	Socket to Socket
JST Sales America Inc. A04XAF04XAF22K203B	1	2.5 mm	0.098 in	4	IDC	Tin				Socket to Socket	0.667 ft	8 in	203.2 mm
JST Sales America Inc. A04XAF04XAF22K254A	1	2.5 mm	0.098 in	4	IDC	Tin				Socket to Socket Reversed	0.833 ft	10 in	254 mm
JST Sales America Inc. A04XAF04XAF22K51A	1	2.5 mm	0.098 in	4	IDC	Tin				Socket to Socket Reversed	0.167 '	2 "	50.8 mm
JST Sales America Inc. A04XAF04XAF22K152A	1	2.5 mm	0.098 in	4	IDC	Tin				Socket to Socket Reversed		6 "	152.4 mm	0.5 '
JST Sales America Inc. A04XAF04XAF22K305B	1	2.5 mm	0.098 in	4	IDC	Tin				Socket to Socket	1 ft		304.8 mm
JST Sales America Inc. A04XAF04XAF22K305A	1	2.5 mm	0.098 in	4	IDC	Tin				Socket to Socket Reversed	1 ft		304.8 mm
JST Sales America Inc. A04XAF04XAF22K102A	1	2.5 mm	0.098 in	4	IDC	Tin	4 "	0.333 ft	101.6 mm	Socket to Socket Reversed
JST Sales America Inc. A04XAF04XAF22K152B	1	2.5 mm	0.098 in	4	IDC	Tin				Socket to Socket		6 "	152.4 mm	0.5 '
JST Sales America Inc. A04XAF04XAF22K203A	1	2.5 mm	0.098 in	4	IDC	Tin				Socket to Socket Reversed	0.667 ft	8 in	203.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.93

General part information

4 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.167' (50.80mm, 2.00")
