150-95500

Active

HELLERMANNTYTON

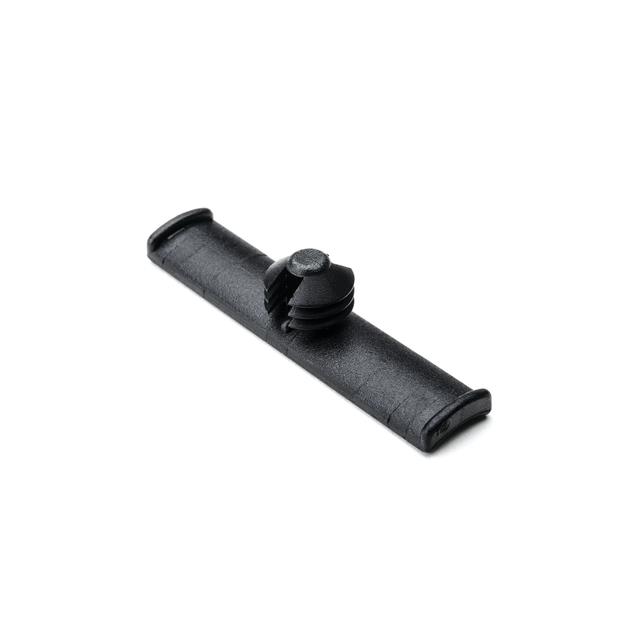

CBL CLIP BUNDLING BLACK FIR TREE

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP BUNDLING BLACK FIR TREE

Technical Specifications

Parameters and characteristics for this part

Specification	150-95500

Color	Black
Features	UV Resistant, Heat Stabilized, Impact Resistant
Height [z]	0.126 "
Height [z]	3.2 mm
Length	37.08 mm
Length	1.46 "
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 HB
Mounting Type	Fir Tree
Panel Hole Size [Max]	7.1 mm
Panel Hole Size [Max]	0.28 in
Panel Hole Size [Min]	6.4 mm
Panel Hole Size [Min]	0.252 in
Panel Thickness [Max]	0.06 in, 1.52 mm
Panel Thickness [Min]	0.031 ", 0.8 mm
Type	Bundling, Clip
Width [x]	8 mm
Width [x]	0.315 in

Part	Height [z]	Height [z]	Length	Length	Type	Material	Mounting Type	Material Flammability Rating	Panel Thickness [Max]	Panel Thickness [Min]	Width [x]	Width [x]	Color	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Max]	Features
HELLERMANNTYTON 150-95500	0.126 "	3.2 mm	37.08 mm	1.46 "	Bundling Clip	Polyamide (PA66) Nylon 6/6	Fir Tree	UL94 HB	0.06 in 1.52 mm	0.031 " 0.8 mm	8 mm	0.315 in	Black	6.4 mm	7.1 mm	0.252 in	0.28 in	Heat Stabilized Impact Resistant UV Resistant
