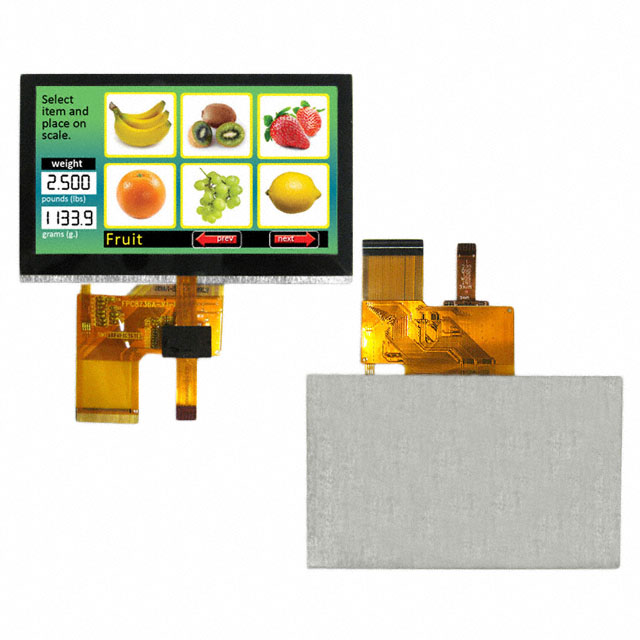

NHD-4.3-480272MF-ATXI#-CTP-1

Obsolete

Newhaven Display Intl

LCD TFT 480X272 4.3" CAP T/S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLCD Solvent Precautions LCD Safe Handling Procedure +1

NHD-4.3-480272MF-ATXI#-CTP-1

Obsolete

Newhaven Display Intl

LCD TFT 480X272 4.3" CAP T/S

Deep-Dive with AI

DocumentsLCD Solvent Precautions LCD Safe Handling Procedure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-4.3-480272MF-ATXI#-CTP-1

Backlight	LED - White
Diagonal Screen Size	109.22 mm
Diagonal Screen Size	4.3 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pitch [x]	0.2 mm
Dot Pitch [y]	0.2 mm
Dot Pixels [x]	480
Dot Pixels [y]	272
Dot Size [x]	0.17 mm
Dot Size [y]	0.19 mm
Graphics Color	Green, Red, Blue
Interface	Parallel
Interface	24 Bit
Touchscreen	Capacitive
Viewing Area [y]	96.94 mm
Viewing Area [z]	55.21 mm

NHD-4.3 Series

Part	Backlight	Diagonal Screen Size	Diagonal Screen Size	Display Mode	Interface	Interface	Touchscreen	Dot Pixels [y]	Dot Pixels [x]	Graphics Color	Viewing Area [y]	Viewing Area [x]	Display Type	Viewing Area [z]	Controller Type	Dot Size [y]	Dot Size [x]	Dot Pitch [x]	Dot Pitch [y]	Supplied Contents	Utilized IC / Part	Function	Type	Primary Attributes	Contents
Newhaven Display Intl NHD-4.3-480272EF-ASXV#-CTP	LED - White	109.22 mm	4.3 in	Transmissive	Parallel	24 Bit	Capacitive	272	480	Blue Green Red	53.86 mm	95.04 mm	TFT - Color
Newhaven Display Intl NHD-4.3-480272EF-ASXV#-T	LED - White	109.22 mm	4.3 in	Transmissive	Parallel	24 Bit	Resistive	272	480	Blue Green Red	98.7 mm		TFT - Color	57.5 mm
Newhaven Display Intl NHD-4.3-480272FT-CSXN-CTP	LED - White	109.22 mm	4.3 in	Transmissive	SPI		Capacitive	272	480	Blue Green Red		95.44 mm	TFT - Color	54.2 mm	FT813
Newhaven Display Intl NHD-4.3-800480MB-ASXP-CTP	LED - White	109.22 mm	4.3 in	Transmissive	24-Bit (RGB)		Capacitive	480	800	Blue Green Red	53.86 mm	95.04 mm	TFT - Color IPS (In-Plane Switching)		EK73002AB5 EK9716BE3
Newhaven Display Intl NHD-4.3-480272MF-ATXI#-CTP-1	LED - White	109.22 mm	4.3 in	Transmissive	Parallel	24 Bit	Capacitive	272	480	Blue Green Red	96.94 mm		TFT - Color	55.21 mm		0.19 mm	0.17 mm	0.2 mm	0.2 mm
Newhaven Display Intl NHD-4.3-480272EF-ATXL#-CTP	LED - White	109.22 mm	4.3 in	Transmissive	Parallel	24 Bit	Capacitive	272	480	Blue Green Red	53.86 mm	95.04 mm	TFT - Color		FT5306
Newhaven Display Intl NHD-4.3-800480CF-ASXP-CTP	LED - White	109.22 mm	4.3 in	Transmissive	24-Bit (RGB)		Capacitive	480	800	Blue Green Red	54.8 mm	96.1 mm	TFT - Color IPS (In-Plane Switching)		EK73002AB4 EK9716BE3
Newhaven Display Intl NHD-4.3-480272MF-34 CONTROLLER BOARD																				Board(s)	SSD1963	LCD Controller	Display	TFT COG Graphic and Character LCD Displays	Board(s)
Newhaven Display Intl NHD-4.3-480272MB-ASXN-T	LED - White	109.22 mm	4.3 in	Transmissive	Parallel	24 Bit	Resistive	272	480	Blue Green Red	53.86 mm	95.04 mm	TFT - Color		HX8257-A
Newhaven Display Intl NHD-4.3-HDMI-HR-RSXP-CTU	LED - White	109.22 mm	4.3 in		HDMI USB		Capacitive	480	800				TFT - Color IPS (In-Plane Switching)		TFP401A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NHD-4.3 Series

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 4.3" (109.22mm) 480 x 272
