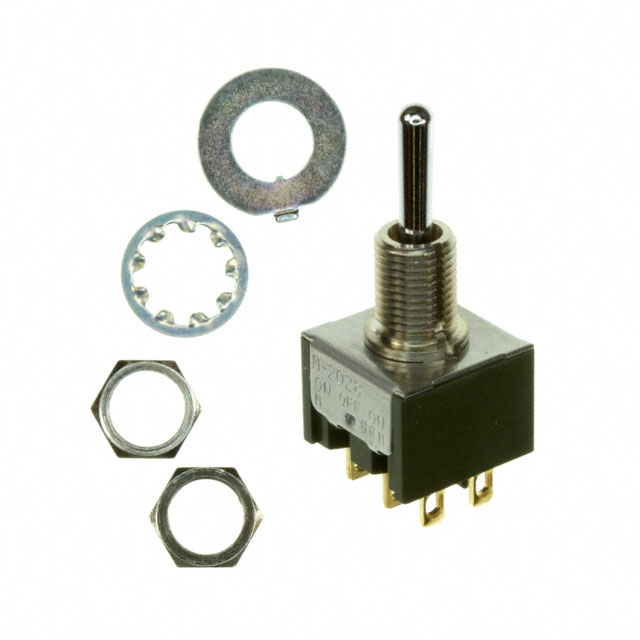

M2028SS1G01
ObsoleteNKK Switches
SWITCH TOGGLE DPDT 0.4VA 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M2028SS1G01
ObsoleteNKK Switches
SWITCH TOGGLE DPDT 0.4VA 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2028SS1G01 |
|---|---|
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Bushing Thread | 1/4-40 |
| Circuit | DPDT |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | Mom-Off-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
M2028SS Series
| Part | Switch Function | Current Rating (Amps) | Termination Style | Bushing Thread | Circuit | Electrical Life | Voltage Rating - DC | Actuator Type | Illumination | Panel Cutout Dimensions [diameter] | Features | Voltage Rating - AC | Actuator Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Mom-Off-Mom | 0.4 VA | Solder Lug | 1/4-40 | DPDT | 50000 Cycles | 28 V | Standard Round | Non-Illuminated | 6.5 mm | Epoxy Sealed Terminals | 28 V | Brass Chrome Plated | -30 ░C | 85 °C | ||
NKK Switches | Mom-Off-Mom | 0.4 VA | Wire Wrap | 1/4-40 | DPDT | 50000 Cycles | 28 V | Standard Round | Non-Illuminated | 6.5 mm | Epoxy Sealed Terminals | 28 V | Brass Chrome Plated | -30 ░C | 85 °C | ||
NKK Switches | Mom-Off-Mom | 3 A 6 A | PC Pin | 1/4-40 | DPDT | 25000 Steps | 30 V | Standard Round | Non-Illuminated | 6.5 mm | Epoxy Sealed Terminals | 125 V | Brass Chrome Plated | -30 ░C | 85 °C | ||
NKK Switches | Mom-Off-Mom | 0.4 VA | PC Pin | Unthreaded | DPDT | 50000 Cycles | 28 V | Standard Round with Cap | Non-Illuminated | 6.5 mm | Red Cap | 28 V | Brass Chrome Plated | -30 ░C | 85 °C | Through Hole | 13.5 mm |
NKK Switches | Mom-Off-Mom | 3 A 6 A | Quick Connect - 0.062" (1.5mm) | 1/4-40 | DPDT | 25000 Steps | 30 V | Standard Round with Cap | Non-Illuminated | 6.5 mm | Blue Cap | 125 V | Brass Chrome Plated | -30 ░C | 85 °C | 13.5 mm | |
NKK Switches | Mom-Off-Mom | 3 A 6 A | Solder Lug | 1/4-40 | DPDT | 25000 Steps | 30 V | Standard Round | Non-Illuminated | 6.5 mm | Epoxy Sealed Terminals | 125 V | Brass Chrome Plated | -30 ░C | 85 °C | ||
NKK Switches | Mom-Off-Mom | 3 A 6 A | PC Pin | 1/4-40 | DPDT | 25000 Steps | 30 V | Standard Round | Non-Illuminated | 6.5 mm | Epoxy Sealed Terminals | 125 V | Brass Chrome Plated | -30 ░C | 85 °C | Through Hole Right Angle | |
NKK Switches | Mom-Off-Mom | 0.4 VA | PC Pin | 1/4-40 | DPDT | 50000 Cycles | 28 V | Standard Round | Non-Illuminated | 6.5 mm | Epoxy Sealed Terminals | 28 V | Brass Chrome Plated | -30 ░C | 85 °C | ||
NKK Switches | Mom-Off-Mom | 3 A 6 A | Quick Connect - 0.062" (1.5mm) | 1/4-40 | DPDT | 25000 Steps | 30 V | Standard Round | Non-Illuminated | 6.5 mm | Epoxy Sealed Terminals | 125 V | Brass Chrome Plated | -30 ░C | 85 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M2028SS Series
Toggle Switch DPDT Panel Mount
