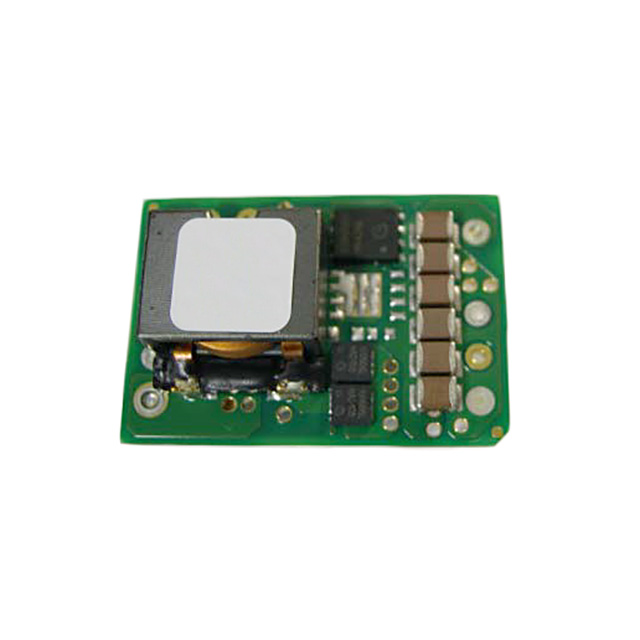

I6A24008A033V-N01-R - 8-DIP Module (7 Leads)

I6A24008A033V-N01-R

Active
TDK-LAMBDA

NON ISOLATED POL DC/DC CONVERTER, ITE, SIXTEENTH BRICK, 75 W, -30 V, -3.3 V, 8 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
I6A24008A033V-N01-R - 8-DIP Module (7 Leads)

I6A24008A033V-N01-R

Active
TDK-LAMBDA

NON ISOLATED POL DC/DC CONVERTER, ITE, SIXTEENTH BRICK, 75 W, -30 V, -3.3 V, 8 A

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationI6A24008A033V-N01-R
ApplicationsITE (Commercial)
Approval AgencyCE
Control FeaturesActive Low, Enable
Current - Output (Max) [Max]8 A
Efficiency92 %
FeaturesSCP, OCP, OTP, Remote On/Off
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / CaseSixteenth Brick
Power (Watts)75 W
Size / Dimension [x]33 mm
Size / Dimension [x]1.3 "
Size / Dimension [y]0.9 "
Size / Dimension [y]22.9 mm
Size / Dimension [z]12.7 mm
Size / Dimension [z]0.5 in
Supplier Device PackageSixteenth Brick
TypeNon-Isolated PoL Module
Voltage - Input (Min) [Min]9 V
Voltage - Output 1 [Max]-30 V
Voltage - Output 1 [Min]-3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 37.45
10$ 37.40
25$ 35.43
50$ 33.42
NewarkEach 25$ 35.43
50$ 33.42

Description

General part information

I6A24008 Series

Non-Isolated PoL Module DC DC Converter 1 Output -3.3 ~ -30V 8A 9V - 40V Input
