DHS4E4F941KL2B

Obsolete

Murata Power Solutions Inc.

CAP CER 940PF 30KV N4700 DISK

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CAP CER 940PF 30KV N4700 DISK

Technical Specifications

Parameters and characteristics for this part

Part	Temperature Coefficient	Mounting Type	Features	Voltage - Rated	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Applications	Package / Case	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]
Murata Power Solutions Inc. DHS4E4F191KC2B	N4700	Requires Holder	High Voltage	30 kV	30000 V	20 °C	85 °C	190 pF	General Purpose	Disk Metal Fitting - Threaded	10 %	0.787 in	20 mm	1.161 "	29.5 mm
Murata Power Solutions Inc. DHS4E4F941KL2B	N4700	Requires Holder	High Voltage	30 kV	30000 V	20 °C	85 °C	940 pF	General Purpose	Disk Metal Fitting - Threaded	10 %	1.496 "	38 mm	1.161 "	29.5 mm
Murata Power Solutions Inc. DHS4E4F172MRXB	N4700	Requires Holder	High Voltage	30 kV	30000 V	20 °C	85 °C	1700 pF	General Purpose	Disk Metal Fitting - Threaded	20 %	2.047 in	52 mm			1.161 in	29.5 mm
Murata Power Solutions Inc. DHS4E4F172KR2B	N4700	Requires Holder	High Voltage	30 kV	30000 V	20 °C	85 °C	1700 pF	General Purpose	Disk Metal Fitting - Threaded	10 %	2.047 in	52 mm			1.161 in	29.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

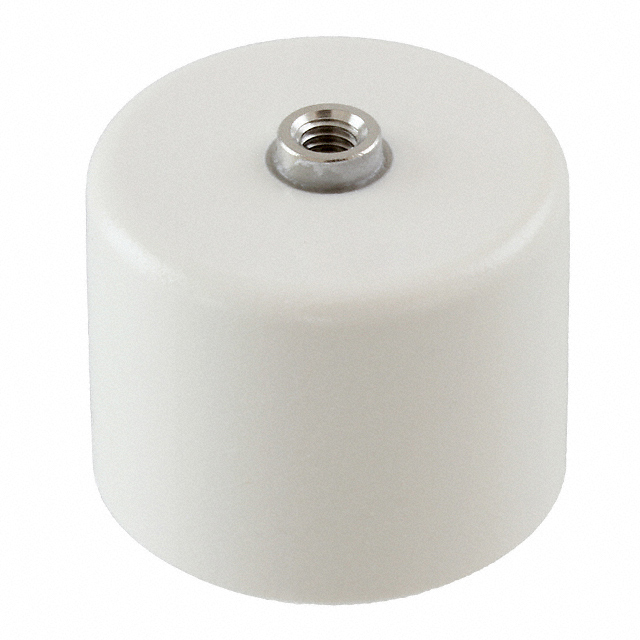

940 pF ±10% 30000V (30kV) Ceramic Capacitor N4700 Disk, Metal Fitting - Threaded
