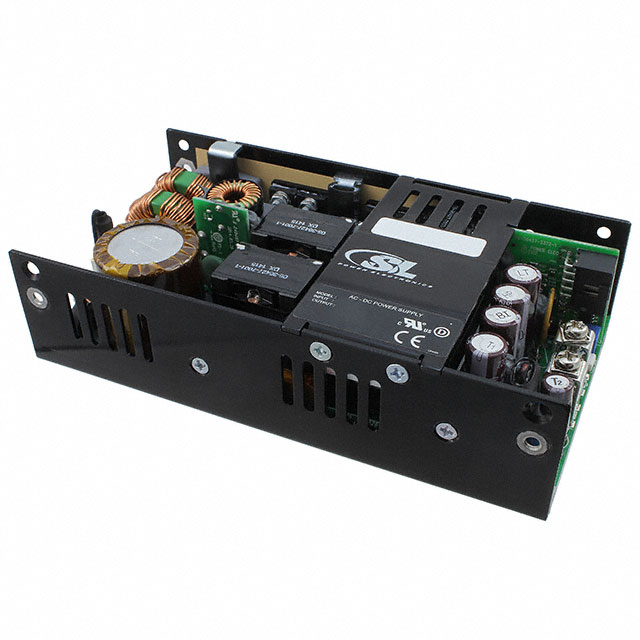

TU425S24E

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 300W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 300W

Technical Specifications

Parameters and characteristics for this part

Specification	TU425S24E

Applications	ITE (Commercial)
Approval Agency	cURus, DEMKO, CE
Current - Output 1	11.9 A
Efficiency	90 %
Features	Remote Sense, DC Input Capable, Standby Output, Universal Input, Load Sharing
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	425 W, 300 W
Size / Dimension [x]	157.4 mm
Size / Dimension [x]	6.2 in
Size / Dimension [y]	3.3 in
Size / Dimension [y]	83.8 mm
Size / Dimension [z]	41.1 mm
Size / Dimension [z]	1.62 in
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Voltage - Output 1	Voltage - Isolation	Mounting Type	Efficiency	Applications	Minimum Load Required	Power (Watts)	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Number of Outputs	Features
SL POWER / Advanced Energy TU425S24E	24 V	4000 V	Chassis Mount	90 %	ITE (Commercial)		300 W 425 W	11.9 A	-10 °C	70 °C	3.3 in	157.4 mm	6.2 in	41.1 mm	83.8 mm	1.62 in	Open Frame	90 VAC	264 VAC	CE cURus DEMKO	1	DC Input Capable Load Sharing Remote Sense Standby Output Universal Input
