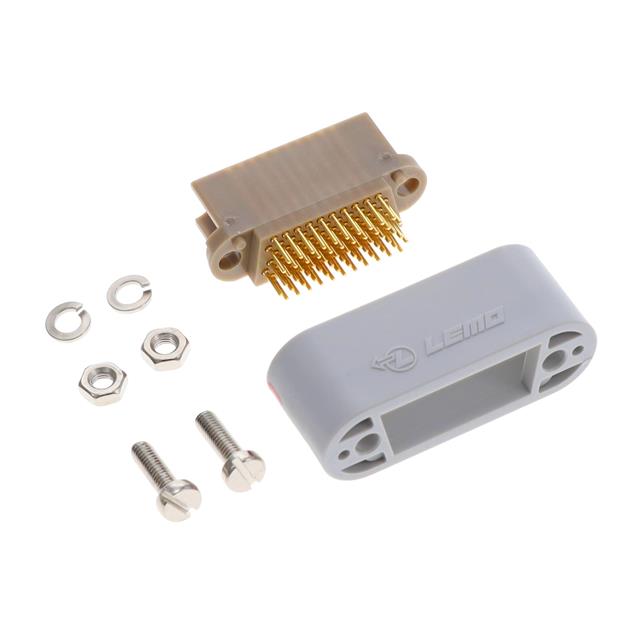

EGG.1R.365.GLN

Active

LEMO

CONN RCPT 65POS SCREW MOUNT

Search across all available documentation for this part.

Active

LEMO

CONN RCPT 65POS SCREW MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	EGG.1R.365.GLN

Applications	General Purpose, Medical, Automotive
Connector Type	Receptacle
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Mounting Flange
Insulation Color	Gray
Insulation Height	14.5 mm
Insulation Height	0.571 in
Mounting Type	Screw Mount
Number of Positions	65
Number of Positions Loaded	All
Style	Board to Cable/Wire
Termination	Solder

Part	Number of Positions	Termination	Features	Number of Positions Loaded	Connector Type	Insulation Height	Insulation Height	Mounting Type	Contact Shape	Contact Type	Style	Fastening Type	Insulation Color	Applications	Color	Cable Termination	Wire Type
LEMO EGG.1R.336.VLM	36	Crimp	Mounting Flange	All	Receptacle	14.5 mm	0.571 in	Screw Mount	Circular	Female Socket	Board to Cable/Wire	Push-Pull	Green	Automotive General Purpose Medical
LEMO EGG.1R.365.GLN	65	Solder	Mounting Flange	All	Receptacle	14.5 mm	0.571 in	Screw Mount	Circular	Female Socket	Board to Cable/Wire	Push-Pull	Gray	Automotive General Purpose Medical
LEMO EGG.1R.365.GLM	65	Crimp	Mounting Flange	All	Receptacle	14.5 mm	0.571 in	Screw Mount	Circular	Female Socket	Board to Cable/Wire	Push-Pull	Gray	Automotive General Purpose Medical
LEMO EGG.1R.328.GLN	28				Receptacle			Panel Mount Screw In		Female Socket		Push-Pull			Gray	Solder	Discrete

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 160.44

General part information

65 Position Receptacle Connector Screw Mount
