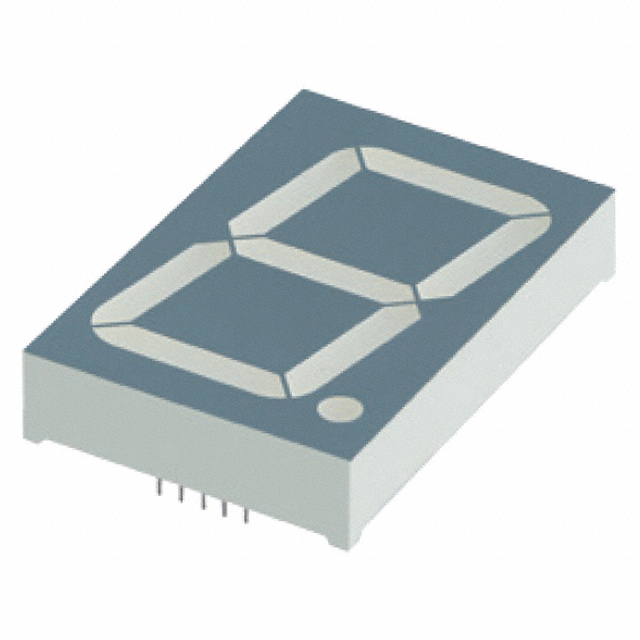

XDVG46C

Active

SunLED

DISPLAY 7SEG 1.75" SGL GRN 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDVG46C

Active

SunLED

DISPLAY 7SEG 1.75" SGL GRN 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDVG46C

Color	Green
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	44.5 mm
Digit/Alpha Size	1.75 in
Display Type	7-Segment
Millicandela Rating	50 mcd
Number of Characters [custom]	1
Package / Case	10-DIP
Package / Case [x]	1.9 in
Package / Case [x]	48.26 mm
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	2.205 in
Size / Dimension [x]	56 mm
Size / Dimension [y]	38 mm
Size / Dimension [y]	1.496 "
Size / Dimension [z]	11 mm
Size / Dimension [z]	0.433 in
Voltage - Forward (Vf) (Typ)	6 V

XDVG46 Series

Part	Voltage - Forward (Vf) (Typ)	Current - Test	Color	Digit/Alpha Size	Digit/Alpha Size	Number of Characters [custom]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case [x]	Package / Case	Package / Case [x]	Millicandela Rating	Power Dissipation (Max) [Max]	Common Pin	Display Type
SunLED XDVG46C	6 V	10 mA	Green	44.5 mm	1.75 in	1	11 mm	0.433 in	2.205 in	38 mm	56 mm	1.496 "	1.9 in	10-DIP	48.26 mm	50 mcd	75 mw	Common Cathode	7-Segment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	130	$ 3.75

Description

General part information

XDVG46 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 6V 10mA 2.205" H x 1.496" W x 0.433" D (56.00mm x 38.00mm x 11.00mm) 10-DIP (1.900", 48.26mm)
