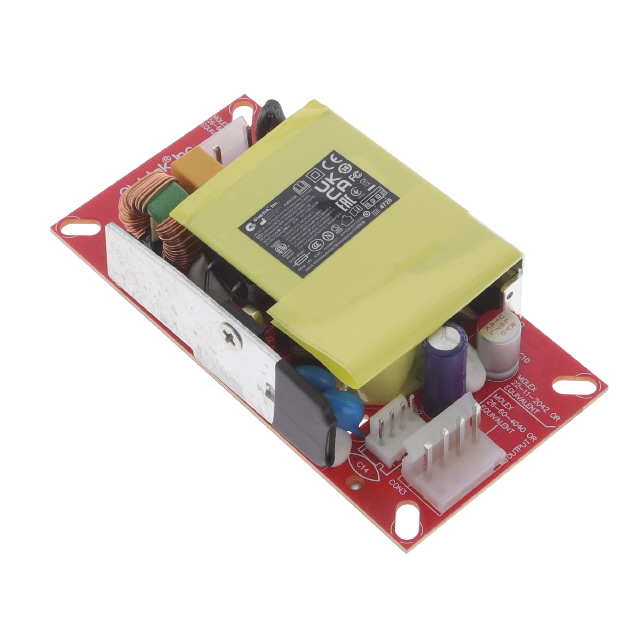

GTM43007-B3006-FW(R)

Active

GlobTek, Inc.

AC/DC CONVERTER 6V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GTM43007-B3006-FW(R)

Active

GlobTek, Inc.

AC/DC CONVERTER 6V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GTM43007-B3006-FW(R)

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	S-Mark, CE, CCC, NEMKO, FCC, EAC, CB, ETL, UKRSepro, cETLus
Current - Output 1	5 A
Efficiency	89 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	30 W
Standard Number	62368-1, 60335-1, 60950-1, 60601-1-11, 60601-1-2
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	6 V

GTM43007 Series

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Type	Applications	Efficiency	Current - Output 1	Voltage - Isolation	Voltage - Output 1	Number of Outputs	Approval Agency	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)
GlobTek, Inc. GTM43007-B6019-FW(R)	Universal Input	-10 °C	45 °C	90 VAC	264 VAC	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Open Frame	Household Appliances ITE (Commercial) Medical	89 %	3.15 A	4000 V	19 V	1	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	Chassis Mount
GlobTek, Inc. GTM43007-B4512-FW(R)	Universal Input	-10 °C	45 °C	90 VAC	264 VAC	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Open Frame	Household Appliances ITE (Commercial) Medical	89 %	3.75 A	4000 V	12 V	1	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	Chassis Mount
GlobTek, Inc. GTM43007-A6048-FW(R)	Universal Input	-10 °C	45 °C	90 VAC	264 VAC	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Open Frame	Household Appliances ITE (Commercial) Medical	89 %	1.25 A	4000 V	48 V	1	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	Chassis Mount	0.89 in	50.8 mm	22.5 mm	76.2 mm	2 in	3 "
GlobTek, Inc. GTM43007-B6048-FW(R)	Universal Input	-10 °C	45 °C	90 VAC	264 VAC	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Open Frame	Household Appliances ITE (Commercial) Medical	89 %	1.25 A	4000 V	48 V	1	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	Chassis Mount
GlobTek, Inc. GTM43007-B3006-FW(R)	Universal Input	-10 °C	45 °C	90 VAC	264 VAC	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Open Frame	Household Appliances ITE (Commercial) Medical	89 %	5 A	4000 V	6 V	1	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	Chassis Mount							30 W
GlobTek, Inc. GTM43007-A6012-FW(R)	Universal Input	-10 °C	45 °C	90 VAC	264 VAC	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Open Frame	Household Appliances ITE (Commercial) Medical	89 %	5 A	4000 V	12 V	1	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKCA UKRSepro	Chassis Mount	0.93 in	50.8 mm	23.6 mm	76.2 mm	2 in	3 "
GlobTek, Inc. GTM43007-A6030-FW(R)	Universal Input	-10 °C	45 °C	90 VAC	264 VAC	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Open Frame	Household Appliances ITE (Commercial) Medical	89 %	2 A	4000 V	30 V	1	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	Chassis Mount	0.89 in	50.8 mm	22.5 mm	76.2 mm	2 in	3 "
GlobTek, Inc. GTM43007-A6030-F(R)	Universal Input	-10 °C	45 °C	90 VAC	264 VAC		Open Frame	Household Appliances ITE (Commercial) Medical	89 %	2 A	4000 V	30 V	1	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro VCCI	Chassis Mount	1.2 "	50.8 mm	30.5 mm	76.2 mm	2 in	3 "
GlobTek, Inc. GTM43007-B6018-FW(R)	Universal Input	-10 °C	45 °C	90 VAC	264 VAC	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Open Frame	Household Appliances ITE (Commercial) Medical	89 %	3.33 A	4000 V	18 V	1	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	Chassis Mount
GlobTek, Inc. GTM43007-A6015-FW(R)	Universal Input	-10 °C	45 °C	90 VAC	264 VAC	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Open Frame	Household Appliances ITE (Commercial) Medical	89 %	4 A	4000 V	15 V	1	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	Chassis Mount	0.89 in	50.8 mm	22.5 mm	76.2 mm	2 in	3 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.82
		5	$ 17.30
		10	$ 16.77
		25	$ 16.25
		90	$ 15.20
		270	$ 14.68
		540	$ 14.42

Description

General part information

GTM43007 Series

Open Frame AC DC Converters 1 Output 6V 90 ~ 264 VAC Input

Documents

Technical documentation and resources
