Technical Specifications
Parameters and characteristics for this part
| Specification | 2901639 |
|---|---|
| Approval Agency | UKCA, CE |
| Coil Current | 7 mA |
| Coil Resistance | 3.43 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) x 2 |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 3.5 A |
| Features | Socket Included, Diode, Lighted Indicator |
| Load - Max Switching | 875 VA, 105 W |
| Mounting Type | DIN Rail |
| Operate Time | 4 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | Spring Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 66.51 | |
| 10 | $ 62.16 | |||
| 50 | $ 57.19 | |||
| 100 | $ 52.84 | |||
Description
General part information
29016 Series

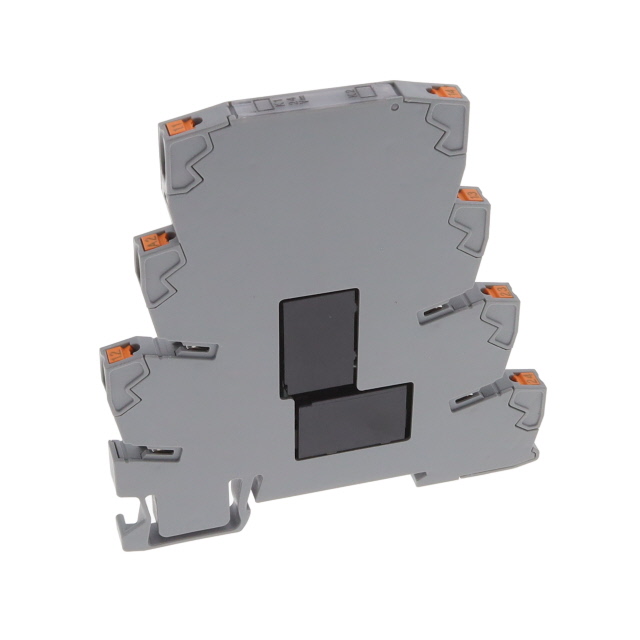

General Purpose Relay SPST-NO (1 Form A) x 2 24VDC Coil DIN Rail
